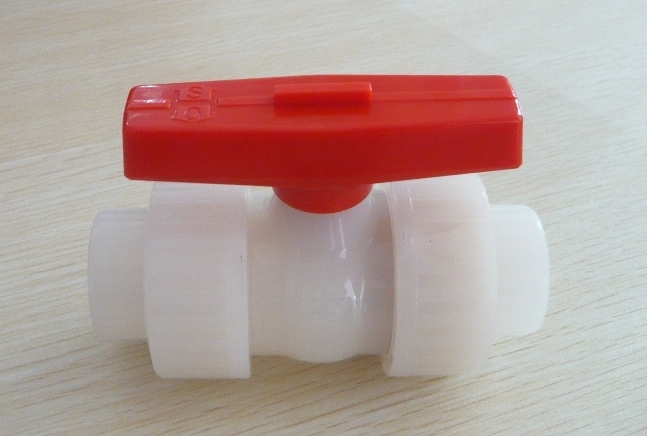

NO | 名称 | 材质 |
1 | 阀体 | FRPP、PVDF、CPVC、UPVC、PVC、RPP 、ABS |
2 | 球 | FRPP、PVDF、CPVC、UPVC、PVC、RPP 、ABS |
3 | 压紧 | FRPP、PVDF、CPVC、UPVC、PVC、RPP 、ABS |
4 | 接头(螺口,承接) | FRPP、PVDF、CPVC、UPVC、PVC、RPP 、ABS |
5 | 拼紧螺帽 | FRPP、PVDF、CPVC、UPVC、PVC、RPP 、ABS |
6 | 密封圈 | PTER、F4 |
7 | 手柄 | ABS |
8 | 阀杆 | FRPP、PVDF、CPVC、UPVC、PVC、RPP 、ABS |
9 | O型密封圈 | EPDM.FPM |
10 | O型密封圈 | EPDM.FPM |
11 | O型密封圈 | EPDM.FPM |
12 | 密封圈 | EPDM.FPM |
DN | ZG | D | L | L1 |
工作压力 (Mpa) |
重量=Kg/台 | ||
FRPP | CPVC | PVDF | ||||||
15 | 1/2" | 20 | 100 | 15 | 0.6 | 0.15 | 0.25 | 0.25 |
20 | 3/4" | 25 | 120 | 17 | 0.6 | 0.2 | 0.28 | 0.35 |
25 | 1" | 33 | 135 | 20 | 0.6 | 0.3 | 0.4 | 0.5 |
32 | 1 1/4" | 40 | 150 | 23 | 0.6 | 0.5 | 0.65 | 0.8 |
40 | 1 1/2" | 50 | 170 | 25 | 0.6 | 0.6 | 1.0 | 1.15 |
50 | 2" | 63 | 200 | 28 | 0.6 | 1.0 | 1.65 | 1.85 |
65 | 2 1/2" | 75 | 215 | 32 | 0.5 | 1.5 | 2.2 | 2.5 |
80 | 3" | 90 | 265 | 35 | 0.4 | 2.2 | 3.7 | 4.2 |
100 | 4" | 110 | 360 | 45 | 0.4 | 3.0 | 6.1 | 6.8 |

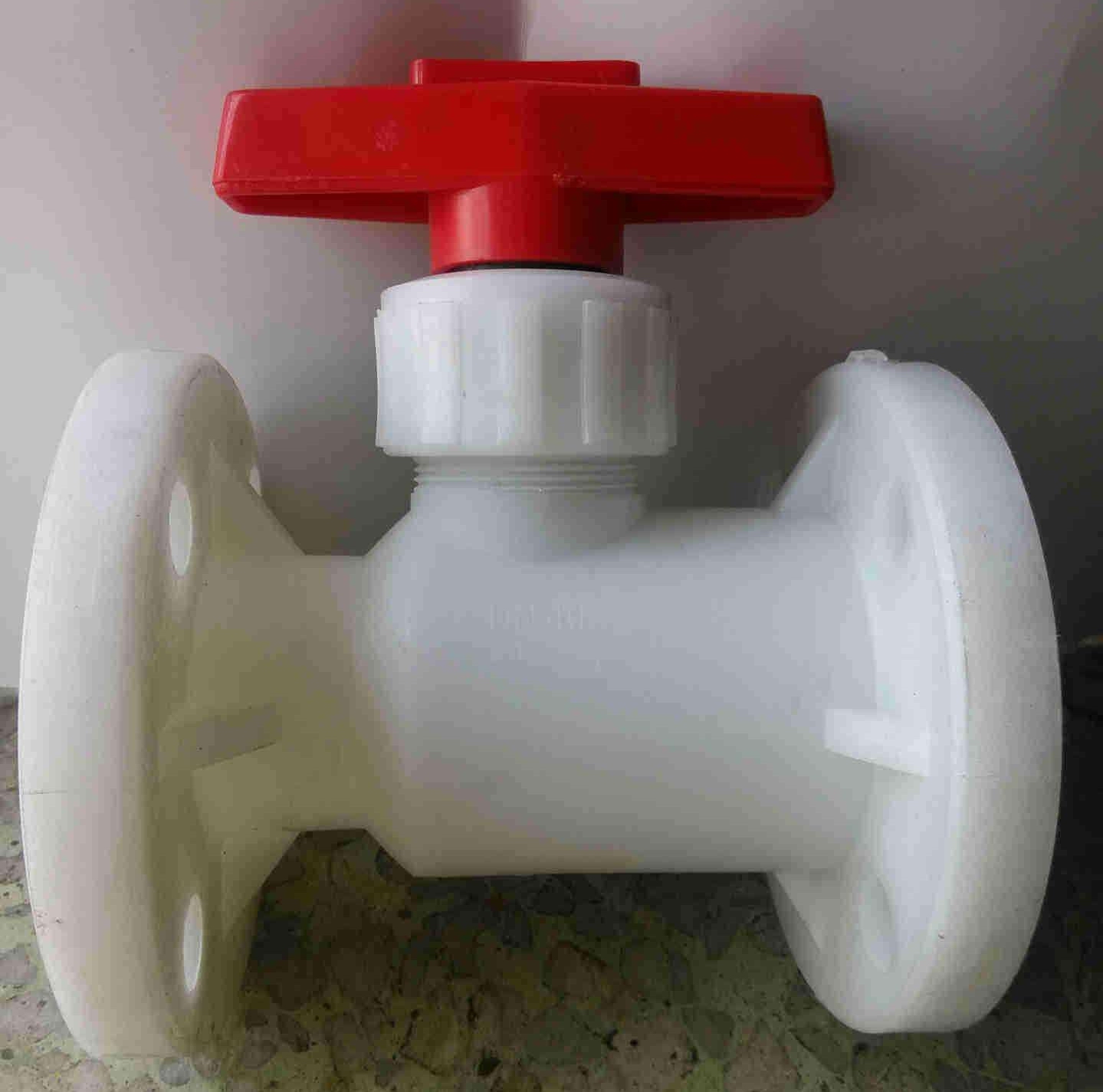

NO | 名称 | 材质 |
1 | 阀体 | FRPP、PVDF、CPVC、UPVC、PVC、RPP 、ABS |
2 | 球 | FRPP、PVDF、CPVC、UPVC、PVC、RPP、ABS |
3 | 密封圈 | PTER、F4 |
4 | 内塞 | FRPP、PVDF、CPVC、UPVC、PVC、RPP |
5 | 手柄 | ABS |
6 | 压紧螺母 | FRPP、PVDF、CPVC、UPVC、PVC、RPP 、ABS |
7 | 密封 | PTER、F4 |
8 | 阀杆 | FRPP、PVDF、CPVC、UPVC、PVC、RPP、ABS |
DN | D1 | D | L | d | n | ¢ | 公称压力 | ||||||||||
HG | JIS | DIN | ANSI | HG | JIS | DIN | ANSI | HG | JIS | DIN | ANSI | PVDF | RPP | ||||
15 | 95 | 65 | 70 | 65 | 60 | 100 | 14 | 4 | 4 | 4 | 4 | 14 | 15 | 14 | 16 | 1.2 | 1 |
20 | 105 | 75 | 75 | 75 | 70 | 120 | 16 | 4 | 4 | 4 | 4 | 14 | 15 | 14 | 16 | 1.2 | 1 |
25 | 115 | 85 | 90 | 85 | 80 | 140 | 16 | 4 | 4 | 4 | 4 | 14 | 19 | 14 | 16 | 1.2 | 1 |
32 | 135 | 100 | 160 | 16 | 4 | 18 | 1.2 | 1 | |||||||||
40 | 145 | 110 | 105 | 110 | 98 | 165 | 16 | 4 | 4 | 4 | 4 | 18 | 19 | 18 | 16 | 1.2 | 1 |
50 | 160 | 125 | 120 | 125 | 120 | 180 | 18 | 4 | 4 | 4 | 4 | 18 | 19 | 18 | 19 | 1.2 | 1 |
65 | 180 | 145 | 140 | 145 | 140 | 220 | 22 | 4 | 4 | 4 | 4 | 18 | 19 | 18 | 14 | 1.2 | 1 |
80 | 195 | 160 | 150 | 160 | 152 | 250 | 25 | 4 | 8 | 8 | 4 | 18 | 19 | 18 | 14 | 1.2 | 1 |
100 | 215 | 160 | 175 | 180 | 190 | 280 | 25 | 8 | 8 | 8 | 8 | 18 | 19 | 18 | 19 | 1.2 | 1 |
125 | 245 | 210 | 210 | 210 | 216 | 320 | 30 | 8 | 8 | 8 | 8 | 18 | 23 | 18 | 22 | 1 | 0.8 |
150 | 280 | 240 | 240 | 240 | 240 | 360 | 30 | 8 | 8 | 8 | 8 | 23 | 23 | 23 | 22 | 1 | 0.8 |
200 | 335 | 295 | 295 | 295 | 298 | 400 | 35 | 8 | 12 | 8 | 8 | 23 | 23 | 23 | 22 | 0.8 | 0.8 |
250 | 395 | 350 | 355 | 350 | 362 | 500 | 38 | 12 | 12 | 12 | 12 | 23 | 23 | 23 | 22 | 0.8 | 0.6 |
300 | 455 | 400 | 400 | 400 | 432 | 600 | 40 | 12 | 16 | 12 | 12 | 23 | 25 | 23 | 25 | 0.8 | 0.5 |
