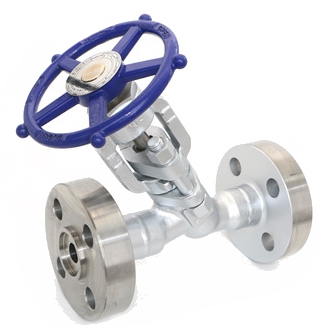

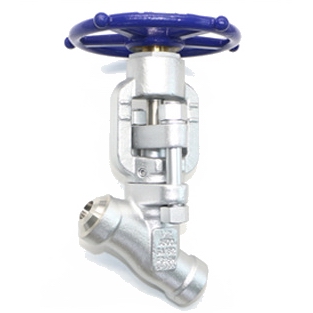

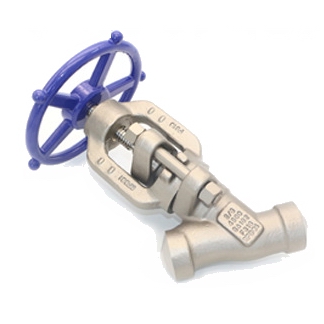

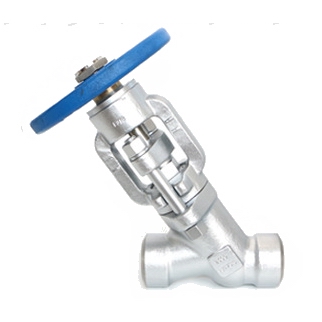

阀体 | WCB | WC1 | WC6 | WC9 |
阀盖 | 25 | 15CrMoA | 12Cr1MoVA | 12Cr1MoVA |
支架 | WCB | WCB | WCB | WCB |
WC1 | WC6 | WC9 | ||
阀瓣 | 25 | 15CrMoA | 12Cr1MoVA | 12Cr1MoVA |
阀杆 | 25Cr2MoV | 25Cr2MoV | 20Cr1Mo1V1A | 20Cr1Mo1V1A |
阀座 | 25 | 15Cr1MoA | 12Cr1MoVA | 12Cr1MoVA |
密封环 | 增强柔性石墨 | |||
填料 | 增强柔性石墨 | |||
阀杆螺母 | ZCuA110Fe3 |
序号 | 零件名称 | CStoASTM | AStoASTM | SStoASTM | |
A105 | A182F22 | A182F304(L) | A182F316(L) | ||
1 | 阀体 | A105 | A182F22 | A182F304(L) | A182F316(L) |
2 | 阀瓣 | A276 420 | A276 304 | A276 304(L) | A276 316(L) |
3 | 阀杆 | A182 F6 | A182F304(L) | A182F316(L) | |
4 | 密封螺母 | A105 | A182F304 | A182F304(L) | A182F316(L) |
5 | 填料 | 柔性石墨 | PTFE | ||
6 | 密封圈 | F182F304L | A182F316(L) | ||
7 | 提升螺母 | A1942H | A1944 | A1948 | A1948M |
8 | 填料压套 | A276 420 | A182 F304 | ||
9 | 填料压板 | A216WCB | A351CF8 | ||
10 | 销钉 | A276420 | A182F304 | ||
11 | 活节螺栓 | A193 B7 | A193B16 | A193B8 | A1983 B8M |
12 | 螺母 | A1942H | A1944 | A1948 | A1948M |
13 | 油嘴 | A105 | A182F22 | A182F304(L) | A182F316(L) |
14 | 阀杆螺母 | A276 F410 | |||
15 | 阀盖 | A105 | A182F22 | A182F304(L) | A182F316(L) |
16 | 铭牌 | SS | |||
17 | 锁紧螺母 | A1942H | A1944 | A1948 | A1948M |
18 | 手轮 | A197 | |||
适用介质 | 水、蒸汽、油品等 | 水、蒸汽、油品等 | 硝酸、醋酸等 | ||
适用温度 | ~29℃~425℃ | ~29℃~550℃ | ~29℃~200℃ |

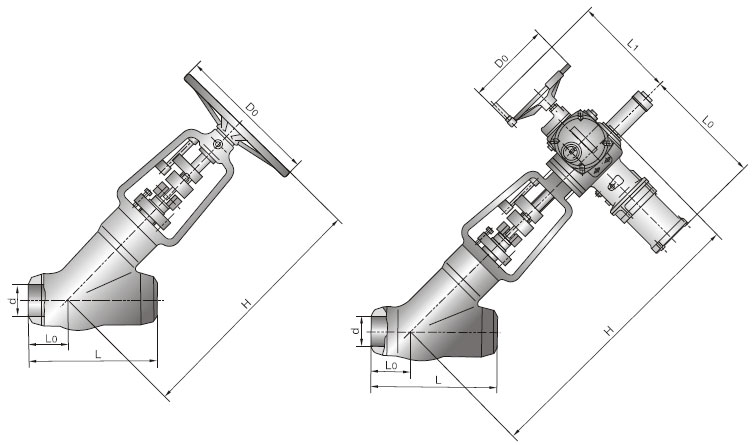

公称通径NPS(in) | 主要外形尺寸和连接尺寸(mm) | ||||
d | L | L0 | H | D0 | |
J65Y-1500Lb | |||||
2 1/2 | 56 | 330 | 130 | 670 | 360 |
3 | 64 | 368 | 140 | 750 | 460 |
4 | 84 | 457 | 170 | 830 | 510 |
5 | 100 | 533 | 185 | 910 | 560 |
6 | 126 | 610 | 190 | 1100 | 610 |
J65Y-2500Lb | |||||
2 | 38 | 310 | 120 | 550 | 300 |
2 1/2 | 46 | 340 | 130 | 670 | 360 |
3 | 54 | 390 | 147 | 750 | 460 |
4 | 70 | 480 | 170 | 830 | 720 |
公称通径NPS(in) | 主要外形尺寸和连接尺寸(mm) | 电动装置 | ||||||
d | L | Lo | H | Do | L1 | L2 | ||
J965Y-1500Lb | ||||||||
3 | 64 | 368 | 140 | 990 | 305 | 410 | 565 | SMC-0 |
4 | 84 | 457 | 170 | 990 | 305 | 420 | 654 | SMC-1 |
5 | 100 | 533 | 185 | 1115 | 305 | 420 | 654 | SMC-1 |
6 | 126 | 610 | 190 | 1763 | 457 | 440 | 688 | SMC-2 |
8 | 158 | 762 | 262 | 2026 | 457 | 440 | 688 | SMC-2 |
J965Y-2000Lb | ||||||||
4 | 80 | 457 | 170 | 990 | 305 | 420 | 654 | SMC-1 |
5 | 96 | 533 | 185 | 1115 | 305 | 420 | 654 | SMC-1 |
6 | 118 | 610 | 190 | 1423 | 457 | 440 | 688 | SMC-2 |
8 | 148 | 762 | 262 | 1615 | 457 | 440 | 688 | SMC-2 |
10 | 180 | 914 | 300 | 2240 | 610 | 715 | SMC-4 | |
12 | 222 | 1041 | 360 | 2490 | 610 | 715 | SMC-4 | |
J965Y-2500Lb | ||||||||
2 | 38 | 310 | 120 | 810 | 305 | 400 | 555 | SMC-00 |
2 1/2 | 46 | 340 | 130 | 895 | 305 | 400 | 555 | SMC-00 |
3 | 54 | 390 | 140 | 985 | 305 | 410 | 565 | SMC-0 |
4 | 70 | 480 | 170 | 990 | 305 | 420 | 654 | SMC-1 |
5 | 86 | 580 | 185 | 1115 | 305 | 420 | 654 | SMC-1 |
6 | 104 | 630 | 200 | 1280 | 457 | 440 | 688 | SMC-2 |
8 | 130 | 770 | 260 | 1615 | 457 | 440 | 688 | SMC-2 |
10 | 162 | 930 | 300 | 1930 | 610 | 690 | SMC-3 | |
12 | 210 | 1060 | 360 | 2240 | 610 | 715 | SMC-4 | |
14 | 234 | 1160 | 395 | 2420 | 610 | 715 | SMC-4 | |
J965Y-3500Lb | ||||||||
3 | 48 | 470 | 150 | 1005 | 305 | 410 | 565 | SMC-0 |
4 | 60 | 550 | 115 | 1133 | 305 | 410 | 565 | SMC-0 |
5 | 74 | 660 | 200 | 1280 | 305 | 420 | 654 | SMC-1 |
6 | 88 | 790 | 230 | 1320 | 305 | 420 | 654 | SMC-1 |
