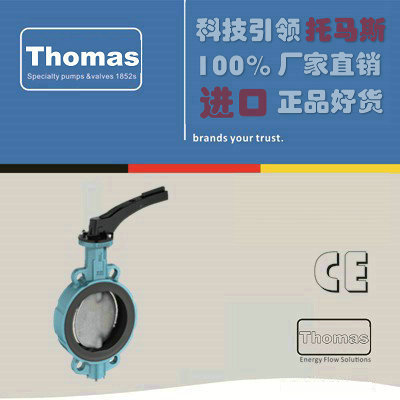

进口对夹式蝶阀原理特点
进口对夹式蝶阀由橡胶密封蝶阀和碳钢或不锈钢阀板、阀杆构成，采用对夹式安装方式。适用于温度≤80～120℃如食品、医药、化工、石油、电力、轻纺、造纸等给排水、气体管道上作调节流量和截流介质的作用。
Note: Seat materials are capable of withstanding lower temperatures without damage. However, the elastomer becomes hard and torques increase. Some flow media may further restrict the published temperature limits and/or significantly reduce seat life.
Options
Seats: Buna-N, EPDM, Hypalon, Viton, Neoprene, PTFE.
Disc: Nickel plated Ductile iron, nylon coated ductile Iron,
aluminum bronze, 316 stainless steel.
Body: Cast iron, ductile iron.
Note: Please refer to “Numbering System” sheet to obtain detailed figure numbers.
Caution: All 1000 series valves must be installed in the partial open position. Installing in the full closed position may damage the seat during start up and void any warranties.
Valves meet MSS-SP67 & API 609
Flange drilling to: ANSI B16.1 Class 125/150
Testing to: API 598
Test Pressures | Shell: 300 psi |
Seat: 220 psi |
Materials:
No. | Part Name | Specifications |
1 | Body | Cast Iron | Cast Iron |
2 | Disc | Ductile Iron* | CF8M SS 316 |
3 | Stem | SS 410 | SS 410 |
4 | Seat | Buna-N/EPDM | Buna-N/EPDM |
5 | Bushing | PTFE | PTFE |
6 | O-Ring | Buna-N | Buna-N |
7 | Pin | Carbon Steel | Carbon Steel |
8 | Hand lever | Malleable Iron | Malleable Iron |
9 | Name Plate | Aluminum Plate | Aluminum Plate |
10 | Position | Carbon Steel | Carbon Steel |
进口对夹式蝶阀品牌
德国托马斯阀门集团于1933年创建于德国鲁尔工业区，也是世界最重要的工业区。位于德国西部、莱茵河下游支流鲁尔河与利珀河之间的地区。德国托马斯阀门集团是以生产高品质、先进的阀门、测量及控制系统而享誉全球的跨国性生产企业。采用世界先进的设备及生产工艺，所有产品都在严格的质量体系监控下完成作业。并在各大洲几十个国家拥有子公司及分支机构。
德国托马斯阀门中国一级总代理
