进口三阀组原理特点
进口三阀组是由三个互相沟通的三个阀组成。根据每个阀在系统中所起的作用可分为：左边为高压阀，右边为低压阀，中间为平衡阀。三阀组与差变送器配套使用,作用是将正、负压测量室与引压点导通或断开；或将正负压测量室断开或导通。

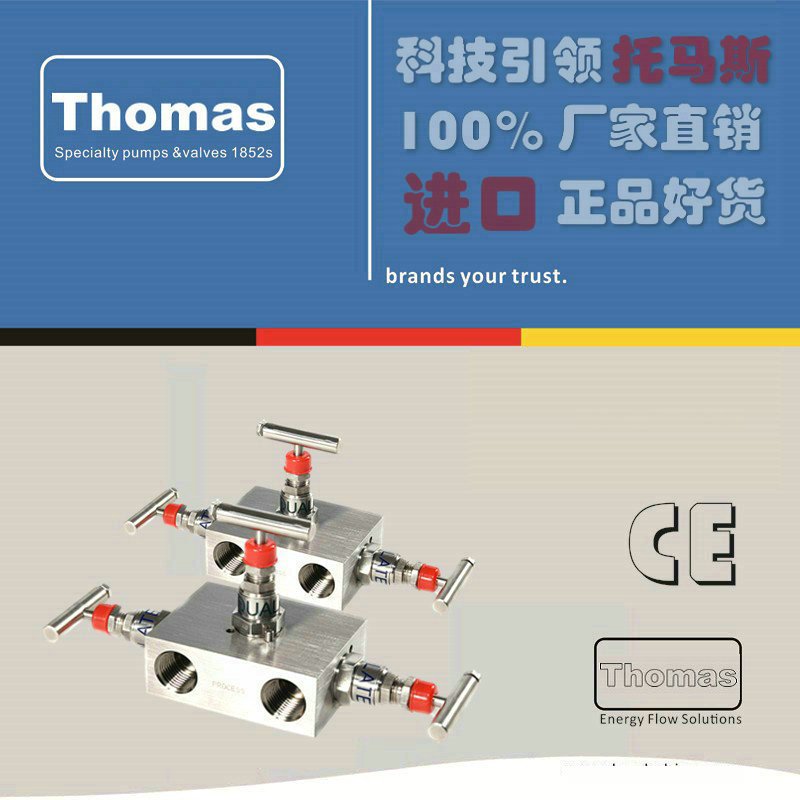

The ‘Y33’ and ‘YV33’ Type 3 valve manifolds are designed for remote mounting to differential pressure transmitters, with separate isolation for LP and HP inlets plus equalising valve for simple calibration. Each needle valve head is designed for safe and reliable isolation, giving bubble tight shut off, with non-rotating & anti-galling tip and dynamic self-adjusting spindle seal to give long service life in a variety of service conditions.
Product Data Sheet
Part No. | Connections Size | A | B | C | Weight (Kgs) |
Y33 | ½" F x F | 8.4 | 3.6 | 2.5 | 1.5 |
YV33 | ½" F x F | 8.4 | 3.6 | 2.5 | 1.5 |
Key Features of the Thomas Needle Valve range
· Non rotating tip - self centering & anti-galling
· Piston ring - gives dynamic adjustment of gland seal in response to pressure change
· Anti-blow out spindle - a major safety feature
· Secure seal - precision machined to give leak free operation for the life of the valve. Available in either PTFE or Grafoil
Standard Specification
Pressure: 6000psi | Packing: PTFE | Handle: T-Bar | Bore: 0.21”(5.4mm) |
Temp: 240 deg C | Thread form: NPT | Seat: Metal to metal | CV: 0.46 |
1/2”Inlet and Outlet Connections | 1/4”NPT Plugged Vent Connection (on YV only) |
|
进口三阀组品牌
德国托马斯阀门集团于1933年创建于德国鲁尔工业区，也是世界最重要的工业区。位于德国西部、莱茵河下游支流鲁尔河与利珀河之间的地区。德国托马斯阀门集团是以生产高品质、先进的阀门、测量及控制系统而享誉全球的跨国性生产企业。采用世界先进的设备及生产工艺，所有产品都在严格的质量体系监控下完成作业。并在各大洲几十个国家拥有子公司及分支机构。
