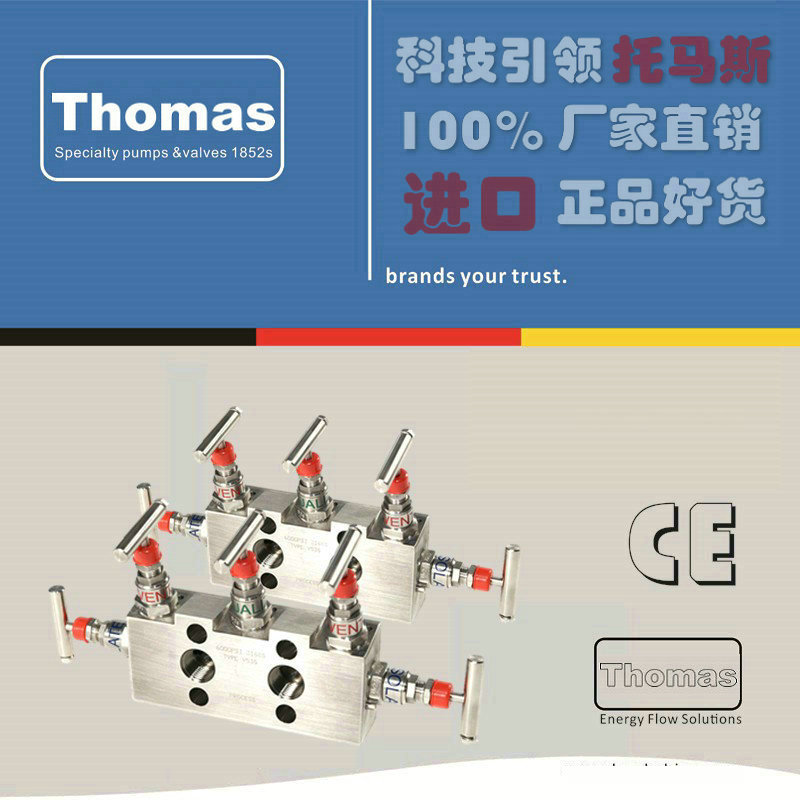

进口五阀组原理特点
进口五阀组由高、低压阀、平衡阀及两个校验（排污）阀组组成；五阀组适用于各种引进仪表装置中、与各种差压、流量、液位等变送器配套安装，工作时将两组校验阀与平衡阀关闭，如需检验时，只要将高、低压阀切断，打开平衡阀及打开两个校验阀，然后再关闭平衡阀及可对变送器进行校验和平衡即可。
The ‘Y53’ Type 5 valve manifolds are designed for direct mounting to differential pressure transmitters, with separate isolation and vent for LP and HP inlets plus equalising valve for simple calibration. Each needle valve head is designed for safe and reliable isolation, giving bubble tight shut off, with non-rotating & anti-galling tip and dynamic self-adjusting spindle seal to give long service life in a variety of service conditions.
Product Data Sheet
Part No. | Connections Size | A | B | C | Weight (Kgs) |
Y53 | ½" F x Flanged | 10.6 | 1.3 | 4.8 | 2.3 |
Key Features of the Thomas Needle Valve range
· Non rotating tip - self centering & anti-galling
· Piston ring - gives dynamic adjustment of gland seal in response to pressure change
· Anti-blow out spindle - a major safety feature
· Secure seal - precision machined to give leak free operation for the life of the valve. Available in either PTFE or Grafoil
Standard Specification
Pressure: 6000psi | Packing: PTFE | Handle: T-Bar | Bore: 0.21”(5.4mm) |
|
Temp: 240 deg C | Thread form: NPT | Seat: Metal to metal | CV: 0.46 |
|
4 x 7/16”UNF bolts for mounting to transmitter | 2 x PTFE/Grafoil seal rings for transmitter flange |
1/2”Inlet Connections | 1/4”NPT Vent Connections |
进口五阀组品牌
德国托马斯阀门集团于1933年创建于德国鲁尔工业区，也是世界最重要的工业区。位于德国西部、莱茵河下游支流鲁尔河与利珀河之间的地区。德国托马斯阀门集团是以生产高品质、先进的阀门、测量及控制系统而享誉全球的跨国性生产企业。采用世界先进的设备及生产工艺，所有产品都在严格的质量体系监控下完成作业。并在各大洲几十个国家拥有子公司及分支机构。
