进口二阀组原理特点及品牌(图)

作者:托马斯·贝尔森·伍德 发布时间:2021-01-14 15:07:16点击:

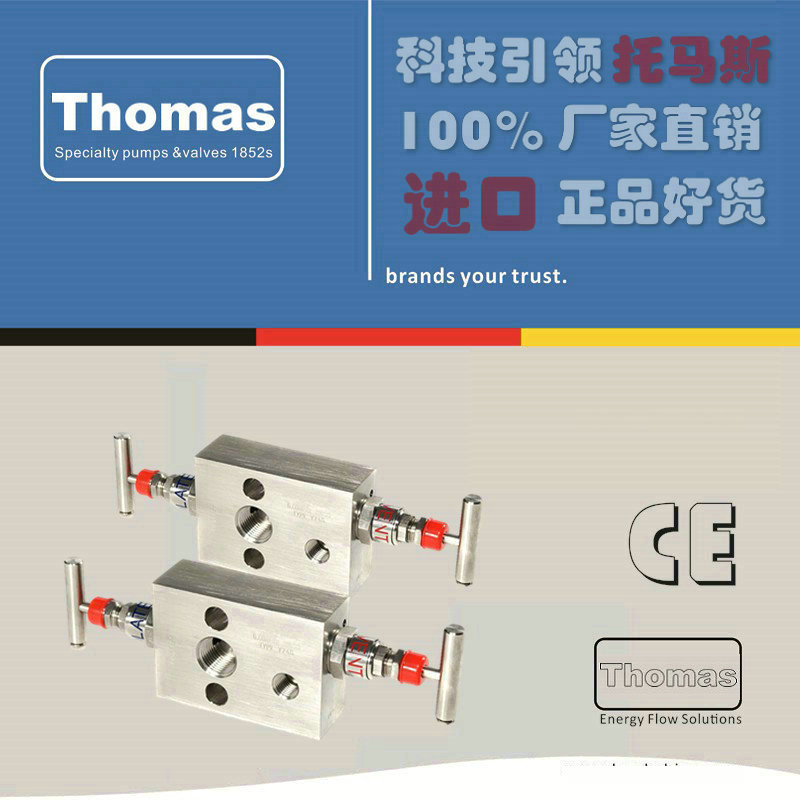

进口二阀组

进口二阀组原理特点

进口二阀组是与压力变送器或压力表配套使用。其作用是将差压变送器正、负压室与引压点导通或切断,或将正、负压室切断或导通。一般用于现场控制仪表上,为仪表提供多通路,减少安装工作量,提高系统可靠性。
The ‘G12FF’ Type 2 valve manifold is designed for remote mounting to static pressure transmitters. The separate vent valve gives full control of venting of the instrument, plus the ability to calibrate in-situ. Each needle valve head is designed for safe and reliable isolation,giving bubble tight shut off, with non-rotating & anti-galling tip and dynamic self-adjusting spindle seal to give long service life in a variety of service conditions.
Product Data Sheet
Part No.
Connections Size
A
B
C
Weight (Kgs)
G12FF
½" F x F
2.5
1.1
7.1
0.9
Key Features of the Thomas Needle Valve range
·Non rotating tip - self centering & anti-galling
·Piston ring - gives dynamic adjustment of gland seal in response to pressure change
·Anti-blow out spindle - a major safety feature
·Secure seal - precision machined to give leak free operation for the life of the valve. Available in either PTFE or Grafoil
Standard Specification

Pressure: 6000psi
Packing: PTFE
Handle: T-Bar
Bore: 0.21” (5.4mm)
Temp: 240 deg C
Thread form: NPT
Seat: Metal to metal
CV: 0.46
1/2” Inlet / Outlet Connections
1/4” NPT Vent Connection

进口二阀组品牌

进口二阀组品牌
德国托马斯阀门集团于1933年创建于德国鲁尔工业区,也是世界最重要的工业区。位于德国西部、莱茵河下游支流鲁尔河与利珀河之间的地区。德国托马斯阀门集团是以生产高品质、先进的阀门、测量及控制系统而享誉全球的跨国性生产企业。采用世界先进的设备及生产工艺,所有产品都在严格的质量体系监控下完成作业。并在各大洲几十个国家拥有子公司及分支机构。
