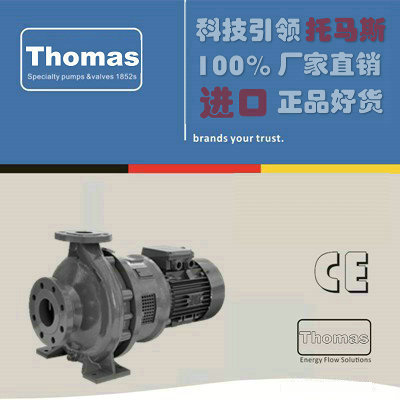

进口单级单吸离心泵原理特点及品牌（图）

进口单级单吸离心泵是在德国托马斯(Thomas)先进技术的基础上，采用国际通用离心泵之性能参数，自行研制开发的新一代节能、环保卧式离心泵。该系列泵性能优、可靠性高、寿命长、结构合理、 外形美观，具有行业领先水平。

主要用途

1、供输送清水及物理化学性质类似于清水的其他液体之用，适用于工业和城市给排水，高层建筑增压送水，园林喷灌，消防增压，远距离输送，暖通制冷循环、浴室等冷暖水循环增压及设备配套，使用温度T≤80℃。

2、适用于：冶金、化工、纺织、造纸、以及宾馆饭店等锅炉热水增压循环输送及城市采暖系统，使用温度T≤120℃。

3、供输送不含固体颗料，具有腐蚀性，粘度类似于水的液体，适用于石油、化工、冶金、电力、造纸、食品制药和合成纤维等部门，使用温度为-20~C～+120℃。

4、供输送汽油、煤油、柴油等用油类产品或易燃、易爆液体，被输送介质温度为一20~C～+120℃。

工作条件

1、吸入压力≤1．6MPa，或泵系统最高工作压力≤1．6MPa，即泵吸入口压力+泵扬程≤1．6MPa、泵静压试验压力为2．5MPa。泵系统工作压力大于1．6MPa时应在订货时另行提出，以便在德国托马斯(Thomas)工厂制造时泵的过流部分和联接部分采用铸钢材料。

2、环境温度<40℃，相对湿度<95％。

3、所输送介质中固体颗粒体积含量不超过单位体积的0．1％，粒度<0．2mm。

注：如使用介质为带有细小颗粒，请在订货时注明，以便厂家采用耐磨式机械密封。

产品特点

1、运行平稳：泵轴的绝对同心度及叶轮优异的动静平衡，保证平稳运行，绝无振动。

2、滴水不漏：不同材质的硬质合金密封，保证了不同介质输送均无泄漏。

3、噪音低：两个低噪音轴承支撑下的水泵，运转平稳，除电机微弱声响，基本无噪音。

4、故障率低：结构简单合理，关键部分采用国际一流品质；配套，整机无故障工作时间大大提高。

5、维修方便：更换密封、轴承，简易方便。

6、占地更省：出口可向左、向右、向上三个方向，便于管道布置安装，节省空间。

Single-stage single-suction centrifugal pump is in Germany Thomas (Thomas) on the basis of advanced technology, the use of international common centrifugal pump performance parameters, developed a new generation of energy-saving, environmentally friendly horizontal centrifugal pump. The series of pump performance, high reliability, long life, reasonable structure, beautiful appearance, with industry-leading level.

The main purpose

1, for the delivery of water and physical and chemical properties similar to other liquids used in water, for industrial and urban water supply and drainage, high-rise building pressurized water, garden irrigation, fire booster, long-distance transport, HVAC refrigeration, Heating and water cycle pressurization and equipment support, the use of temperature T ≤ 80 ℃.

2, apply to: metallurgy, chemical, textile, paper, and hotel hotels such as boiler hot water pressurized circulation and urban heating system, the use of temperature T ≤ 120 ℃.

3, for the transport of non-solid particles, corrosive, viscosity similar to the liquid water, for petroleum, chemical, metallurgical, power, paper, food and synthetic fiber and other departments, the use of temperature -20 ~ 120 ° C.

4, for the delivery of gasoline, kerosene, diesel and other oil products or flammable, explosive liquid, the medium temperature is a 20 ~ C ~ +120 ℃.

Working conditions

1, suction pressure ≤ 1.6MPa, or pump system maximum working pressure ≤ 1.6MPa, that is, pump inlet pressure + pump head ≤ 1.6MPa, pump static pressure test pressure of 2.5MPa. Pump system working pressure greater than 1.6MPa should be made in the order, so that in Germany Thomas (Thomas) factory manufacturing pump part of the flow and the connection part of the use of cast steel.

2, ambient temperature <40 ℃, relative humidity <95%.

3, the volume of solid particles in the transport medium does not exceed 0.1% of the volume per unit volume, particle size <0.2mm.

Note: If the use of media with a small particle, please specify when ordering, so that manufacturers use wear-resistant mechanical seal.

Features

1, smooth operation: the absolute axis of the pump concentricity and impeller excellent static and dynamic balance, to ensure smooth operation, no vibration.

2, water leakage: different materials, carbide seal, to ensure that no leakage of different media delivery.

3, low noise: two low-noise bearings under the support of the pump, running smoothly, in addition to the motor faint sound, basically no noise.

4, the failure rate is low: the structure is simple and reasonable, the key part of the use of world-class quality; matching, machine trouble-free working hours greatly improved.

5, easy maintenance: replacement seals, bearings, simple and convenient.
