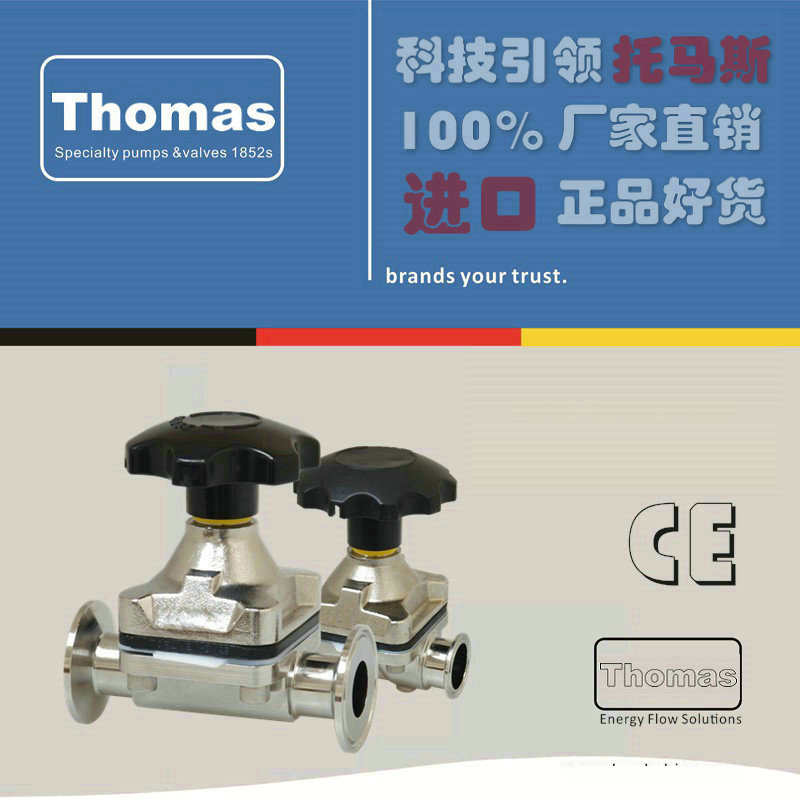

进口卫生级隔膜阀原理特点
卫生级隔膜阀采用加强硅橡胶，阀体经高速精加工抛光处理，光洁度达到Ra0.2um，绝对无菌、无孔角、广泛应用于生物、制药、电子等无菌要求很高的系统。
该阀膜片提供阀体密封和阀座密封，里面没有路径通到外部环境，所以该阀门适用于无菌过程。当阀门关闭时，支撑膜片的压力垫朝阀体上的密封面移动。当压力板移动时,膜片弯曲，被迫推向阀体中心的阀座区域，因此关闭了通向阀体的流体路径。阀体和压力板的相互关系，防止了膜片的挤压。
The standard Thomas two-way valve isavailable in sizes 1/4 " to 6" and can be supplied in any number ofconfigurations with options involving body type, diaphragm type, endconnections and surface finish. Whether combined with our manual bonnetsfeaturing smooth operating high temperature plastic handwheels or our pneumaticactuators, Thomas's innovative design capabilities set us apart.
Features
BPE Compliant machined bar stock bodies with controlled Sulfur
(0.005-0.010%) Ferrite < 0.5%
Integral valve body sealing ridge prevents excessive entrapment of
process media
Sizes from 1/4" to 6" provide process application flexibility
Exterior body surfaces radiused and sloped promote cleanability by
wash-down or COP methods
Fully traceable bodies insure ease of validation/documentation
Drain angle marks etched on end connections insure self-draining
alignment
Surface finishes available from 25Ra to 5Ra, mechanical and
electropolished
Exotic materials including Hastelloy1 AL6XN2 and Titanium available
upon request
Hygienic clamp, butt weld, orbital weld and special end connections
Available
Quality
Our two-way weir type diaphragm valvesfeature robust construction, precision machining and
state of the art surface finishes, withASME-BPE compliant chemistry.
Machining
All of Thomas's two-way and specialconfiguration valve bodies are machined from 316L austenitic
tainless steel bar stock. No castings areused whatsoever.
Traceability
Thomas valves are fully traceable withMaterial Test Reports (MTRs) and Heat Numbers provided as
standard procedure.
Dimensions
Size | A | B |
1/4" - 1/2 " | 2.25" | 1.25" |
3/4" | 3.00" | 2.00" |
1" | 4.25" | 3.20" |
1-1/2" | 5.63" | 4.20" |
2" | 7.00" | 5.00" |
进口卫生级隔膜阀品牌
德国托马斯阀门集团于1933年创建于德国鲁尔工业区，也是世界最重要的工业区。位于德国西部、莱茵河下游支流鲁尔河与利珀河之间的地区。德国托马斯阀门集团是以生产高品质、先进的阀门、测量及控制系统而享誉全球的跨国性生产企业。采用世界先进的设备及生产工艺，所有产品都在严格的质量体系监控下完成作业。并在各大洲几十个国家拥有子公司及分支机构。
