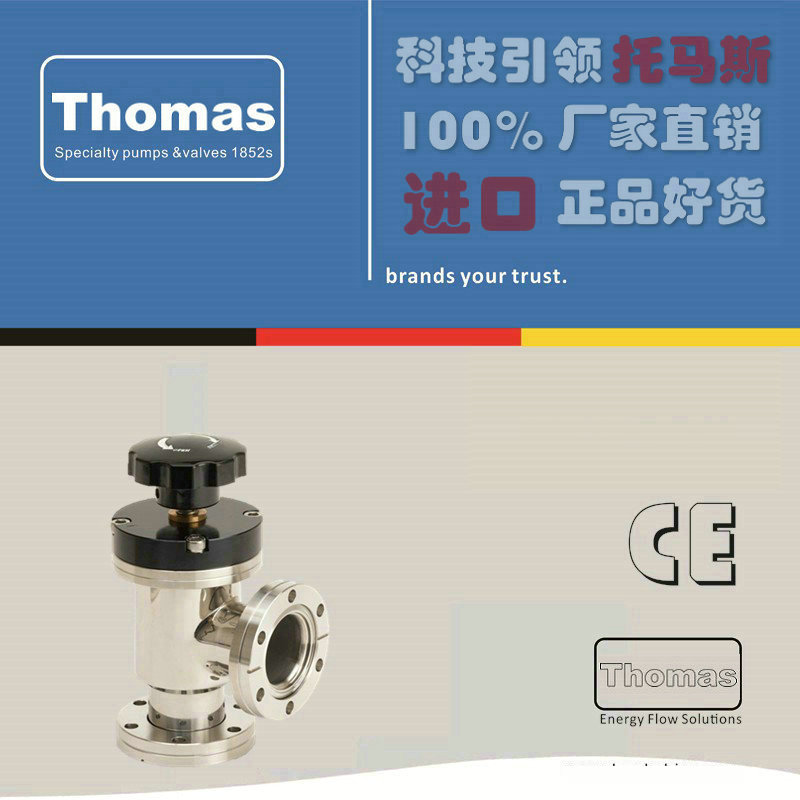

进口真空挡板阀原理特点
进口真空挡板阀是以电磁力为动力直接带动阀板动作，达到阀门开启或关闭的目的。在真空系统中用来切断或导通气流。适用介质为纯净空气或非腐蚀性气体。
Reliable, economical, general-purpose components for HV and UHVapplications requiring cleanliness and corrosion resistance.
In the open position
Edge-welded bellows and valve seat move out of the gas path therebyachieving high conductance
Can withstand intermittent baking to 200° C (150° C Continuous),improving ultimate vacuum
Features
Leak rate across seat: 2x10-9 mbar L/s
Pressure Max: Atmospheric pressure
Pressure Min: 1x10-9 Torr
Feature fluorocarbon o-ring seat seals, bellows-sealed shafts, andbonnet seals (select copper for higher temperature bakeout and better ultimatevacuum)
Available in manual or pneumatic actuation
Normal repairs can be made without removing the valve body from thesystem
NOTE: We list a wide variety of standard tube sizes from 3/8"to 4". Other sizes and valves with mixed flanges are available on request.
NOTE: Pneumatic valves require a solenoid operator (soldseparately). Please see the Angle Valve Accessories chart for thesizes/voltages that are available.
Dimensional Drawings
Flange Size | Dim A | Dim B | Dim C | Bonnet Seal |
1-1/3"CF | 1.60 | 4.54 | 2.73 | Copper |
1-1/3"CF | 1.60 | 4.54 | 2.25 | Fluorocarbon |
1-1/3"CF | 1.60 | 4.66 | 2.73 | Copper |
1-1/3"CF | 1.60 | 4.66 | 2.25 | Fluorocarbon |
1-1/3"CF | 2.50 | 6.50 | 2.73 | Copper |
1-1/3"CF | 2.50 | 6.50 | 2.25 | Fluorocarbon |
2-1/8"CF | 2.05 | 5.49 | 2.73 | Copper |
2-1/8"CF | 2.05 | 5.49 | 2.25 | Fluorocarbon |
2-3/4"CF | 2.45 | 7.71 | 3.25 | Copper |
2-3/4"CF | 2.45 | 7.71 | 3.00 | Fluorocarbon |
3-3/8"CF | 3.48 | 10.08 | 4.05 | Copper |
3-3/8"CF | 3.48 | 10.08 | 3.50 | Fluorocarbon |
4-1/2"CF | 3.38 | 11.32 | 4.61 | Copper |
4-1/2"CF | 3.38 | 11.15 | 4.00 | Fluorocarbon |
4-5/8"CF | 3.53 | 11.96 | 5.62 | Copper |
4-5/8"CF | 3.53 | 11.96 | 4.50 | Fluorocarbon |
进口真空挡板阀品牌
德国托马斯阀门集团于1933年创建于德国鲁尔工业区，也是世界最重要的工业区。位于德国西部、莱茵河下游支流鲁尔河与利珀河之间的地区。德国托马斯阀门集团是以生产高品质、先进的阀门、测量及控制系统而享誉全球的跨国性生产企业。采用世界先进的设备及生产工艺，所有产品都在严格的质量体系监控下完成作业。并在各大洲几十个国家拥有子公司及分支机构。
