进口橡胶瓣止回阀原理特点

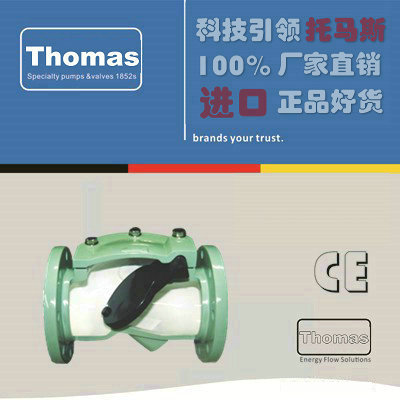

进口橡胶瓣止回阀主要由阀体、阀盖及橡胶瓣三种主要零件组成。其中橡胶瓣由钢板、钢棒及强化尼龙布作衬底，外层披覆橡胶制成，阀瓣开关寿命可达100万次，该阀采用全流面积式设计，具有水头损失小，不易堆积杂物，维修简便等特性。
Technical Data
Size：DN50-DN300
Working Pressure：PN16
Flange Drilling：ANSI B16.1 Class 125,BS4504 PN16.
Inspection and Test：API598
Product Features
The normal body material is Ductile Iron
The external and internal of the body are all with expoy coated, other coatings are available upon request.
The one-piece disc hinge and flapper can be repaired without removal of the valve from the line.
The elastic check can be installed in a vertical or horizontal pipeline.
Flange drilling according to ANSI B16.1.BS4504 PN16; Pressure ration is Class 125 or Class 250.
Material of Construction
| Parts | Description | Material | Specification |
| 1 | Body | Cast Iron | A126B |
| 2 | Cover | Cast | A126B |
| 3 | Disc | Ductile lron+NBR/EPDM |
|
| 4 | Gasket | NBR/EPDM |
|
| 5 | Cover Bolt | Carbon Steel | ASTM A107B |
| 6 | Plug | Carbon Steel | AISI 304 |
| 7 | Hinge | Stainless Steel | AISI 420 |
Other material request kindly refer to Bill of Main Materials of Thomas.
Dimensions
SIZE | L | D | D1 | n-0d |
| DN | NPS |
|
|
|
|
| 50 | 2" | 203 | 165 | 125 | 4-19 |
| 65 | 2.5" | 216 | 185 | 145 | 4-19 |
| 80 | 3" | 241 | 200 | 160 | 8-19 |
| 100 | 4" | 292 | 220 | 180 | 8-19 |
| 125 | 5" | 330 | 250 | 210 | 8-19 |
| 150 | 6" | 356 | 285 | 240 | 8-23 |
| 200 | 8" | 495 | 340 | 295 | 12-23 |
| 250 | 10" | 622 | 400 | 355 | 12-28 |
| 300 | 12" | 698 | 455 | 410 | 12-28 |
Other available Flange drilling kindly refer to the attached Flange Drilling Dimensions.
