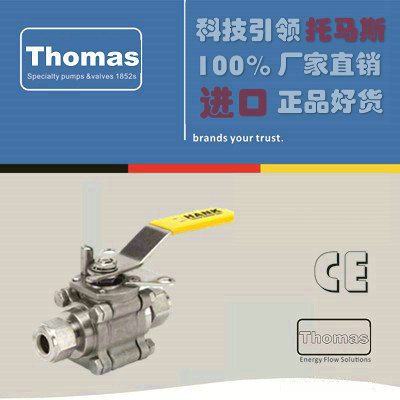

进口卡套式球阀原理特点
进口卡套式球阀主要用于一些气体管路中，开闭简单，密封性能好，被广泛的用于水处理设备、液化气设备、空气压缩机设备、电力设备配套等。
Body Material
316L Stainless Steel
Tube Full Port Design (TFP)
Tube full port maintains unrestricted flow of media.
3-Piece Design
In-line serviceable swing out center section allows
easy access to internal valve components without
disturbing alignment of tubing.
Floating Ball Design
Precision engineered and machined solid stainless
steel ball with relief hole in the stem slot prevents
build-up of cavity pressure while the valve is open.
Stem Design
Live-loaded, bottom entry, blowout proof stem
featuring packing that extends valve cycle life over
conventional ball valves and is best choice for
actuation.
Stem seals are live-loaded using Belleville springs
to provide consistent sealing forces, reducing or
eliminating the need for frequent seal adjustment.
ISO 5211 Integral Mounting Pad
Ideal for actuation.
Centering lip feature assures precise alignment of
bracket, stem and coupler.
Actuators may be retrofitted on existing Thomas®
Series 86 without disruption of line integrity.
Allows for secondary containment unit to be added
when necessary.
Tongue and Groove Design
Fully encapsulated body seals, allowing ends to be
welded in-line, without time consuming and labor
intensive disassembly.
Design compensates for bolt expansion and reduces
the chance of external leakage.
Helps prevent seal ruptures in high pressure,
cryogenic or steam applications.
Encapsulated Body Bolts
Heavy duty stainless steel bolting is protected from
outside environment assuring valve integrity.
Ideal for wash-downs.
Lockable Handle
All Thomas® Series 86 valves are supplied with lever
handles and are designed to permit locking the valve
in either the open or closed position.
Traceability
Body and end piece castings are marked with
heat codes providing traceability to the chemical
analysis and material test reports performed at the
foundry. CMTR’s (Certified Material Test Reports)
are available upon request.
Dimensions (Inches)
Size | A | B | C | D | E | F | G | H | L | P | R | T | U | V |
1/4 | 3.59 | 0.97 | 0.254 | 1.10 | 1.31 | 1.75 | 1.64 | 2.23 | 3/8-24 | .218/.220 | 4.50 | M5x.8 | 1.42(F03) | 0.45 |
3/8 | 3.65 | 0.97 | 0.380 | 1.10 | 1.37 | 1.75 | 1.64 | 2.23 | 3/8-24 | .218/.220 | 4.50 | M5x.8 | 1.42(F03) | 0.45 |
1/2 | 3.91 | 0.97 | 0.505 | 1.10 | 1.47 | 1.75 | 1.64 | 2.23 | 3/8-24 | .218/.220 | 4.50 | M5x.8 | 1.42(F03) | 0.45 |
3/4 | 4.13 | 1.05 | 0.755 | 1.16 | 1.54 | 2.05 | 1.69 | 2.28 | 3/8-24 | .218/.220 | 4.50 | M5x.8 | 1.42(F03) | 0.39 |
1 | 5.12 | 1.54 | 0.997 | 1.62 | 1.79 | 2.42 | 2.36 | 2.84 | 7/16-20 | .293/.295 | 5.79 | M5x.8 | 1.65(F04) | 0.65 |
进口卡套式球阀品牌
德国托马斯阀门集团于1933年创建于德国鲁尔工业区，也是世界最重要的工业区。位于德国西部、莱茵河下游支流鲁尔河与利珀河之间的地区。德国托马斯阀门集团是以生产高品质、先进的阀门、测量及控制系统而享誉全球的跨国性生产企业。采用世界先进的设备及生产工艺，所有产品都在严格的质量体系监控下完成作业。并在各大洲几十个国家拥有子公司及分支机构。
