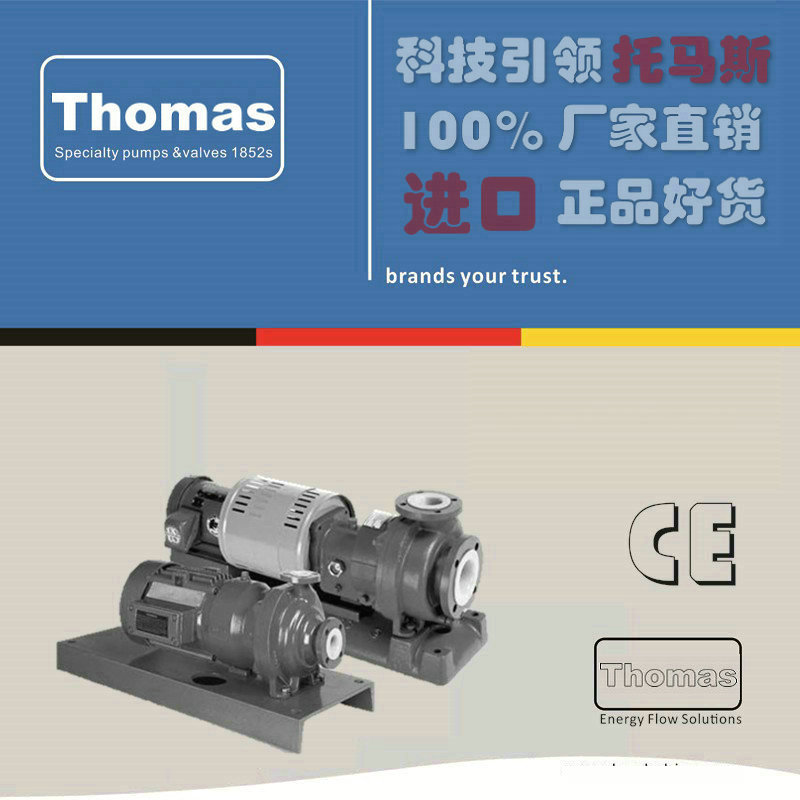

进口氟塑料化工泵原理特点及品牌（图）

进口氟塑料化工泵为单级单吸式氟塑料合金化工离心泵，是按国际标准设计并结合非金属泵的加工工艺设计生产的，德国托马斯(Thomas)化工泵具有耐腐、耐磨、耐高温、不老化、机械强度高、无毒素分解、使用温度宽（输送介质温度为-85℃-200℃）等优点。

结构特点

泵体材质采用金属外壳内衬聚全氟乙丙烯（F46）、叶轮和泵盖均采用金属嵌件外包氟塑料整体烧结压制成型，轴封采用外装式波纹管机械密封，静环选用99.9%氧化铝陶瓷或炭化硅，动环采用四氟填充材料或炭化硅。其特点是该泵结构先进合理，耐腐蚀强，密封性能严密可靠，工作稳定，噪音低，使用寿命长。

产品用途

广泛适用于化工、制药、石油、冶金、电力、电镀、酸洗、农药、造纸等行业中液体输送、废水处理和加酸等工艺流程。本泵可输送任何浓度的硫酸、盐酸、硝酸、醋酸、氢氟酸、王水、强碱、强氧化剂、有机溶剂等强腐蚀性介质的使用，是目前最先进的耐腐蚀装备之一。

技术参数

流量：6.3～400m3/h；

扬程：5～132m；

转速：2900、1450r/min；

功率：0.55～110KW；

进口直径：50～200mm；

最高工作压力：1.6Mpa。

Fluorine plastic chemical pump for single-stage single-suction fluorine plastic alloy chemical centrifugal pump, according to international standards designed and combined with non-metallic pump processing technology design and production, Germany Thomas chemical pump with corrosion resistance, wear resistance High temperature, no aging, high mechanical strength, no toxins decomposition, the use of wide temperature (transmission medium temperature of -85 ℃ -200 ℃) and so on.

Structural features

(F46), the impeller and the pump cover are made of metal inserts, and the plastic seal is made by using the outer ring of the fluoro plastic. The shaft seal adopts the outer type bellows mechanical seal, the static ring is selected to use 99.9% oxidation Aluminum ceramic or silicon carbide, dynamic ring using PTFE filler or silicon carbide. Its characteristics are advanced and reasonable structure of the pump, corrosion resistance, sealing performance is tight and reliable, stable, low noise, long service life.

Product Usage

Widely used in chemical, pharmaceutical, petroleum, metallurgy, electricity, electroplating, pickling, pesticides, paper and other industries in the liquid transport, wastewater treatment and acid and other processes. The pump can transport any concentration of sulfuric acid, hydrochloric acid, nitric acid, acetic acid, hydrofluoric acid, aqua regia, strong alkali, strong oxidants, organic solvents and other corrosive media use, is one of the most advanced corrosion-resistant equipment.

Technical Parameters

Flow: 6.3 ~ 400m3 / h;

Head: 5 ~ 132m;

Speed: 2900,1450r / min;

Power: 0.55 ~ 110KW;

Import diameter: 50 ~ 200mm;
