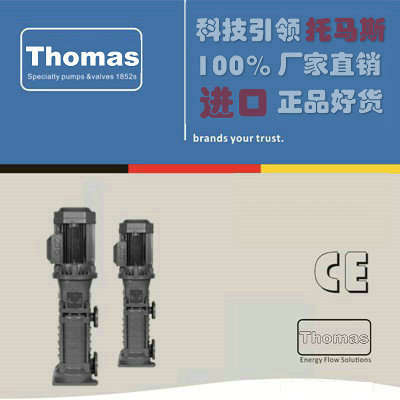

进口立式多级离心泵原理特点及品牌（图）

进口立式多级离心泵是采用了高效节能的优秀水力模型，因此具有效率高，性能范围广等优点，更好地满足了用户的使用要求。另外，该泵在结构上采用了立式、分段形式，且运转安全、平稳、寿命长、占地面积小、安全维修方便。立式多级离心泵采用国际推荐使用的高效节能产品水力模型，为立式多级多节段式结构，螺杆把进水段、中段、出水段夹紧联成一体。水泵每一级装一个叶轮、一个导水叶。轴向力采用水力平衡法解决，残余轴向力由球轴轴承承受，用油脂润滑。轴封采用软填料或机械密封。德国托马斯(Thomas)立式多级离心泵主要供吸送稀释的、清洁的、不腐蚀的、不爆炸的清水及物理化学性质类似水的不含固体颗粒或纤维的液体。

适用范围

广泛应用于高层建筑的消防、生活供水以及空调机组循环、冷却水输送。

产品特点

1、水力模型先进：效率高，性能范围广。

2、结构新颖，运行可靠：取消了平衡鼓，其轴向力采用水力平衡，彻底解决了平衡鼓易锈蚀、易咬死、易磨损的问题，保证了运行更加可靠。

3、更少的运行、维修费用：采用优质机械密封，耐磨损、无泄漏、使用寿命长，故障率低，具有更少的运行维修费用。

4、运行平稳，噪音低：采用低转速电机，使泵运行平稳，噪音更低。

5、立式结构，占地面积小。

技术参数

流量：4.2-504m3/h；

扬程：24-240m；

功率：1.5-450kw；

转速：1480r/min；

口径：φ40-φ250；

温度范围：0-+90℃；

工作压力：≤2.4Mpa。

使用条件

1、使用的介质应类似水，运动粘度<150mm2/s,且无坚硬颗粒，无腐蚀性质；

2、使用的环境海拔高度<1000米;

3、介质使用温度-15℃～120℃;

4、最大系统工作压力≤2.5MPa;

5、周围环境温度应低于40，,相对湿度低于95%。

Vertical multi-stage centrifugal pump is a high efficiency and energy saving excellent hydraulic model, so it has high efficiency, wide range of performance advantages, and better meet the user's requirements. In addition, the pump in the structure of the vertical, sub-form, and safe operation, smooth, long life, small footprint, safe and easy maintenance. Vertical multi-stage centrifugal pump using the international recommended efficient energy-saving products, hydraulic model for the vertical multi-level multi-segment structure, the screw into the water section, the middle section of the water section together. Each level of the pump is equipped with an impeller, a water guide. The axial force is solved by the hydraulic balance method, and the residual axial force is borne by the ball bearing and lubricated with grease. Shaft seal with soft packing or mechanical seal. Germany Thomas imports of vertical multi-stage centrifugal pump is mainly for the absorption of diluted, clean, non-corrosive, non-explosive water and physical and chemical properties similar to the water without solid particles or fiber liquid.

The scope of application

Widely used in high-rise building fire, water supply and air conditioning unit cycle, cooling water delivery.

Features

1, advanced hydraulic model: high efficiency, wide range of performance.

2, the structure is novel, reliable operation: the elimination of the balance drum, the axial force of the use of hydraulic balance, completely solve the balance drum easy to rust, easy to kill, easy to wear problems, to ensure a more reliable operation.

3, less running, maintenance costs: the use of high-quality mechanical seals, wear-resistant, no leakage, long life, low failure rate, with less running and maintenance costs.

4, smooth operation, low noise: the use of low-speed motor, the pump running smoothly, the noise is lower.

5, vertical structure, small footprint.

Technical Parameters

Flow: 4.2-504m3 / h;

Head: 24-240m;

Power: 1.5-450kw;

Speed: 1480r / min;

Caliber: φ40-φ250;

Temperature range: 0- + 90 ℃;

Working pressure: ≤ 2.4Mpa.

Conditions of Use

1, the use of the media should be similar to water, kinematic viscosity<150mm2 / s, and no hard particles, no corrosive properties;

2, the use of the environment altitude <1000 meters;

3, the use of medium temperature -15 ℃ ~ 120 ℃;

4, the maximum system working pressure ≤ 2.5MPa;
