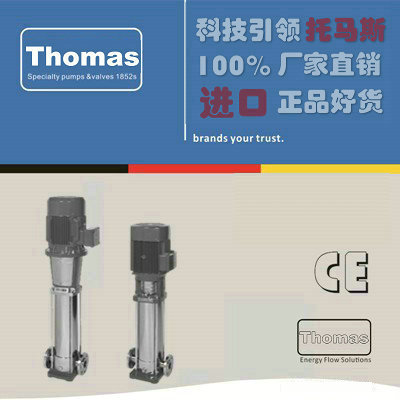

进口多级离心泵原理特点及品牌（图）

进口单级离心泵与电机采用直联式联接，整体的结构非常紧凑美观，泵的过流部件全部采用304不锈钢材料，泵的主要零部件采用薄板冲压结构，具有重量轻的特点，泵配有螺纹进出水口，联接方便，是一款非常现代的泵。德国托马斯(Thomas)单级离心泵广泛应用于工业、农用清水或其他液体的增压、输送，污水处理，设备配套，饮料卫生行业。

输送介质

1、稀薄、干净、非易燃易爆并不含固体颗粒和纤维的液体；

2、可输送轻腐蚀性介质（与介质中氯离子含量、酸或碱的浓度、是否对橡胶和机械密封摩擦付材料产生腐蚀等情况有关）；

3、所输送介质的密度不能大于清水，粘度要接近于水。否则需配用大功率电机。

应用范围

1、工、民用清水或其它液体的增压、输送；

2、水处理系统；

3、水循环系统；

4、农业灌溉；

5、其它领域。

工作条件

1、室内通风良好并防冰冻；

2、清洁、稀薄、非易燃易爆并不含固体颗粒和纤维的液体；

3、可输送弱腐蚀性的化学液体。

技术参数

输送温度: -10℃~+85℃

最高流量：1.2~27m3/h

扬程：11.4~28.2m

环境温度:最高40℃；

海拔最高:1000米；

系统最高压力:8bar

转速:2850±rpm

功率：0.37~2.2kw

电源：单相220V，三相,220/380V/，50Hz

Single-stage centrifugal pump and motor with direct connection, the overall structure is very compact and beautiful, the pump flow components are all made of 304 stainless steel, the main components of the pump with a thin stamping structure, with a light weight characteristics, Into the outlet, easy to connect, is a very modern pump. Germany Thomas (Thomas) single-stage centrifugal pump is widely used in industrial, agricultural water or other liquid pressurization, transportation, sewage treatment, equipment, beverage and beverage industry.

Transport media

1, thin, clean, non-flammable and explosive and does not contain solid particles and fiber liquid;

2, can transport light corrosive media (with the media chloride ion content, acid or alkali concentration, whether the rubber and mechanical seal friction material to produce corrosion, etc.);

3, the density of the transmission medium can not be greater than the water, the viscosity should be close to water. Otherwise need to be equipped with high-power motor.

Application scope

1, workers, civil water or other liquid pressurization, transportation;

2, water treatment system;

3, water circulation system;

4, agricultural irrigation;

5, other areas.

Working conditions

1, indoor ventilation is good and anti-frozen;

2, clean, thin, non-flammable and explosive and does not contain solid particles and fiber liquid;

3, can transport weakly corrosive chemical liquid.

Technical Parameters

Delivery temperature: -10 ℃ ~ +85 ℃

Maximum flow: 1.2 ~ 27m3 / h

Head: 11.4 ~ 28.2m

Ambient temperature: up to 40 ° C;

The highest elevation: 1000 meters;

System maximum pressure: 8 bar

Speed: 2850 ± rpm

Power: 0.37 ~ 2.2kw
