进口全自动过滤器原理特点
进口全自动过滤器是具有对原水进行过滤并自动对滤芯进行清洗排污的功能，且清洗排污时系统不间断供水。有自动控制和手动控制两种。广泛适用于循环或非循环冷却水系统、热交换系统、中央空调系统、集中供暖系统、热水锅炉系统等，分别用来保护冷却设备、热交换装置、空调器、锅炉等。该系列设备适用行业面广，包括建筑、化工、电力、冶金、橡胶、造纸、轻纺、煤炭、食品等行业。

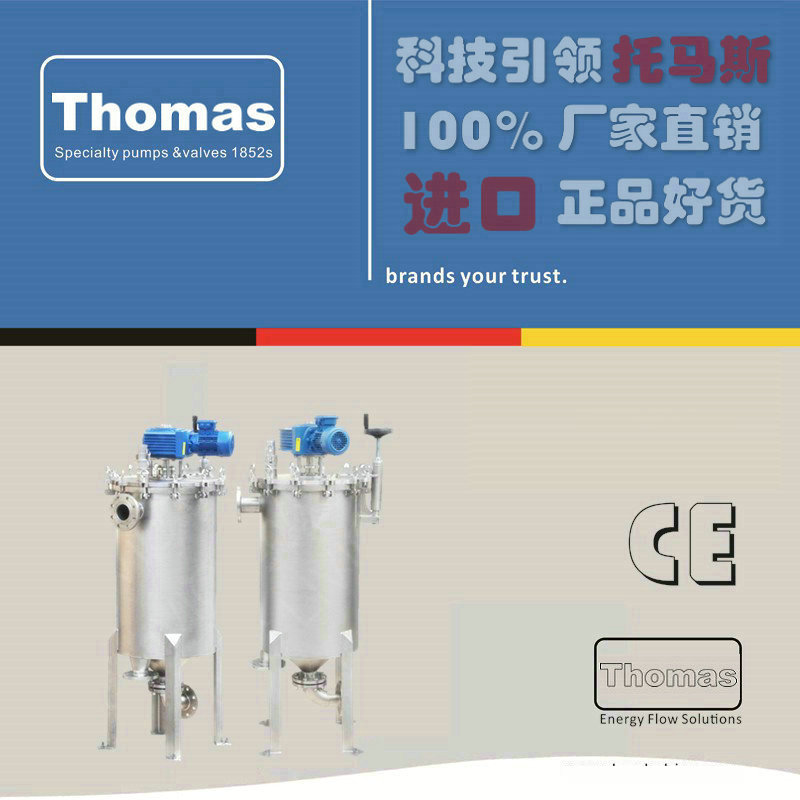

DFXH series self-cleaning filter (DFXH Filter for short), is the high efficiency self-cleaning filter independently developed by Thomas. Removing the impurities particles on the filter element outside by mechanical scraping, it continuously filters on-line.DFXH filter is designed for fine and accurate filtration ranging from 50-500micron. It can avoid extruding and breaking the impurities and is capable of the filtration for water and liquids of viscosity up to 800000cps. DFXH filter is designed and manufactured per Thomas’s high performance, high quality and high reliability standard. It is a world-class quality filter.
The conventional filters get clogged frequently when filtering the viscous liquid and removing the soft impurities. The customers have to select larger filters and clean the filter manually and frequently, which means expensive investment, hard work, valuable liquid loss. DFXH filter solves these kinds of problems by its advanced self-cleaning. It always keeps the filter element clean, discharges waste liquid with high impurity concentration, reduces the liquid loss. When filtering the viscous liquids such as dirty water, adhesives, resins, polymers and oil, DFXH filter works more efficiently. DFXH filter is taking place fo vibrating screen, bag filter, basket filter and some kind of back-flushing filter by its technical advantages and low running cost.
Main Specification
| Applicable Liquid | water and viscous liquids(<800000cps), impurity<1000ppm |
| Filtration Rating | 50-500µm |
| Standard Design Pressure | 1.0 MPa, high design pressure available |
| Design Tempreture | 0-200°C( determined by the seal material) |
| Filter Area Per Filter | 0.11m²-1.36m² |
| Cleaning Differential Pressure | 0.05MPa |
| Differential Pressure Instrument | differential pressure tansmitter(DPT) or diffential pressure switch(DPS) |
| Gear Motor | 180w, three phase, 380V, protection class IP 55; worm reduction gear |
| Inlet and Outlet Standard | flange, HG20592-2009(DIN compatible), HG20615-2009(ANSI B16.5 Compatible) |
| Filter Element Type | V-SLOT slotted metal filter element, 316L material |
| Housing Wet Part Material | 304/316L/CS |
| Scraping Blade Material | 304/316L |
| Housing Seal Material | NBR/VITION(FKM) |
| Discharging Valve | Pneumatic ball valve, protection class IP65 |
| Supply Facility Requirement | 380V AC,0.4-0.6MPa clean and dry compressed air |
Typical Applications
Applicable Industry: oil and fats, water treatment, pulp and paper, petro-chemical, fine chemical
Applicable Liquids: wax, kerosene, monomer, polymer, citric acid, fermented broth, cosmetics, silicon solution, soap, sorbitol, steriodsugar, wet end additives, adhesives, inks, lubricating oil, coatings, resin, rubber, ethanol, miscella, diesel, etc.
