进口袋式过滤器原理特点及品牌（图）

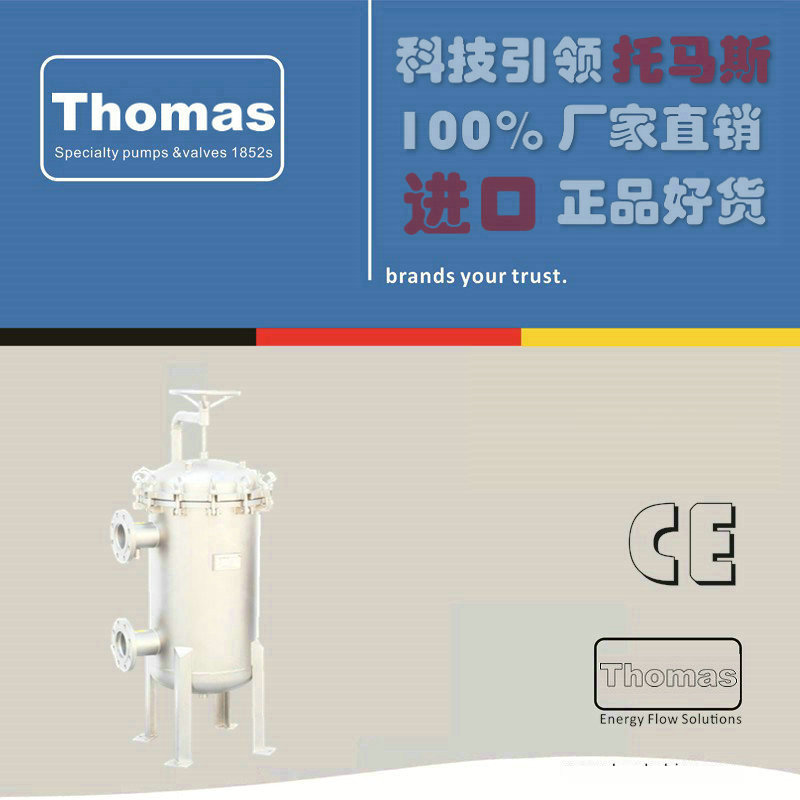

进口袋式过滤器一种结构新颖、体积小、操作简便灵活、节能、高效、密闭工作、适用性强的多用途过滤设备。该过滤器是一种新型的过滤系统，内部由金属网篮支撑滤袋，液体由入口流进，经滤袋过滤后从出口流出，杂质拦截在滤袋中，更换滤袋后可继续使用。

BFH Series Bag Filter (BFH Filter for short), with filter bags as the filter element, is capable of liquid precision filtration, it can remove the tiny impurities from liquid. Compared to cartridge filter, it has advantages of high flowrate, convenient operation and economical filter media consumption, especially capable of viscous liquid filtration. BFH filter has a variety of high-performance filter bags developed by LIVIC, it can meet the most filtering requirements.

BFH Filter is all designed referring to Steel Pressure Vessel standard, made of high quality pure stainless steel (304/316L) material, and fabricated according to strict quality standards. It is safe and reliable, has excellent corrosion resistance, good sealing, durable and well-made.

BFH Filter can meet various filtration requirements, and are available in four styles: BFTH Series single bag filter, over-the-top flowing-in design, absolute sealing, for high filtration rating applications at low flowrate; BFSH Series single bag filter, side flowing-in design, for general filtration rating applications at low flowrate; BFRH Series quick-opening multi-bag filter, only takes 30 seconds to open and close, for high flowrate and frequent bag replacment applications; BFMH Series conventional multi-bag filter, for high flowrate and Non-Frequent bag replacement applications.

Working Principle

Process liquid enters filter housing from the inlet into the filter bag, particles larger than the filtration pore are blocked on the surface or inside the filter bag. Liquid pass across and goes to outlet. When the particles accumulated and increase the pressure drop to 0.05-0.1MPa, replace the clogged bag and continue filtering.

Main Specifications

Sub-series: BFTH series, BFSH series, BFRH series, BFMH series

Optional filter bag: HiSEP, AccuSEP, EcoSEP, OilSEP

Flowrate (m3/h): 1-1000

Filtration rating (μm): 1-1000

Number of bag: 1-24

Filter Area (m2): 0.1-24

Housing Material: 304,316L,CS

Applicable Viscosity (cp): 1-20000

Design pressure (MPa): 0.6, 1.0

Applicable Industries and Liquid

Applicable industries: Fine chemicals, water treatment systems, plup and paper, automobile manufacturing, petro-chemical, machining, coatings, electronics etc.

Applicable liquids: Wide applicability, all liquids contained micro-impurities

Filtration function: Remove all sizes of particles, purify liquids, protection of critical equipment
