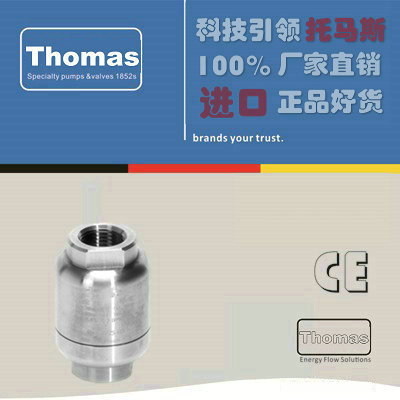

进口热静力式疏水阀原理特点
进口热静力式疏水阀的排凝过冷度可进行任意调制即可根据使用环境自由设定冷凝水排出温度，感温调节元件设置于蒸汽疏水阀本体容易实施。
The TSS22 all stainless steel thermostatic steam traps and air eliminators are specifically designed for use on process equipment such as kettle cookers, sterilizers, food, chemical and laundry equipment. The small size makes it ideal for use with a wide variety of this equipment.
Connections are female screwed.
Main Features
Modulating discharge.
Discharges condensate close to steam temperature.
Thermostats for different subcooling (5ºK to 30ºK).
Excellent air discharge.
Operates on moderate superheated steam.
Simple and compact design.
Options: Welded body.
Use: Saturated steam.
Available Models: TSS 22.
Sizes: 3/8", 1/2", 3/4" and 1".
Connections: Female screwed ISO 7/1 Rp (BS21)
Installation: Horizontal or vertical installation.
Body Limiting Conditions
| Threaded PN40 Allow. Pres. | Related Temp. |
| 34.4 bar | 100°C |
| 30.8 bar | 150°C |
| 28 bar | 200°C |
| 26 bar | 250°C |
PMO - Max. operating pressure 22 bar
TMO - Max. operating temperature 250ºC
Materials
1 Body AISI304 / 1.4301
2 Cover AISI304 / 1.4301
3 * Thermostatic element Stainless steel
4 * Strainer screen AISI304 / 1.4301
5 * Gasket St.Steel / Graphite
* Available Spare Parts
Dimensions(mm)
Size DN | A | B | SW | Weight Kg |
| 1/4” | 65 | 44 | 27 | 0.5 |
| 3/8” | 65 | 44 | 27 | 0.5 |
| 1/2” | 65 | 44 | 27 | 0.45 |
| 3/4” | 65 | 44 | 38 | 0.47 |
| 1” | 65 | 44 | 40 | 0.4 |
进口热静力式疏水阀品牌
德国托马斯阀门集团于1933年创建于德国鲁尔工业区，也是世界最重要的工业区。位于德国西部、莱茵河下游支流鲁尔河与利珀河之间的地区。德国托马斯阀门集团是以生产高品质、先进的阀门、测量及控制系统而享誉全球的跨国性生产企业。采用世界先进的设备及生产工艺，所有产品都在严格的质量体系监控下完成作业。并在各大洲几十个国家拥有子公司及分支机构。
