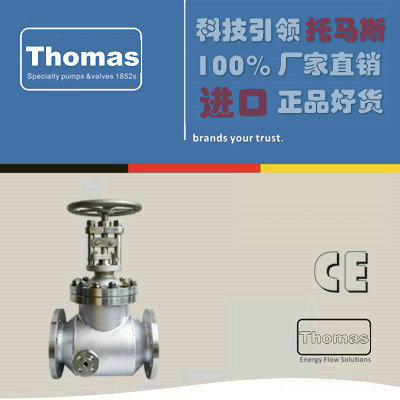

进口保温截止阀原理特点
进口保温截止阀是主要用于石油、化工、冶金、制药等各类系统中，以输送常温下会凝固的高粘度介质，该阀保温夹套焊装于阀门的两法兰之间，阀门的侧面、底部设置有保温夹套的两个连接口。特别适用于化工、化肥行业的管路上，夹套内涵入蒸汽能防止介质结晶。广泛应用于石油、化工、冶金、制药等各类系统中。
Design Standard
•Design and manufacturing standards: GB/T 12235
•Structure length standard: GB/T 12221
•Connection flange standard: GB/T 9113, HG/T20592
•Pressure temperature rating: GB/T 12224
•Test and inspection standards: GB/T 13927, JB/T9092, API598
Application
Temperature Control Bellows Sealed Globe Valve are widely used in petroleum, chemical, metallurgy, pharmaceutical, foodindustry. Steam or other agents are injected into the jacket to ensure normalcirculation of mediums thathave a tendency to solidify, crystallize or having high viscosity at room temperature.
Feature
a. Jacket is of integral design, the jacket seam is fully welded, and isinspected 100% via Xray test;
b. Achieve 0 leaking with Bellow seal plussecondary gland filler seal.
c. Integral valve body design, wire seal, carbide alloysealing surface;
d. Sink type valve cover, protecting thebellows from the media erosion;
e. The opening at the bottom of the coverallows sufficient medium entering into the gap between the bellow pipe and thevalve cover. By heating the temperature of the upper part of the bellow pipe toensure the sensitive ?action of the valveparts;
f. Finite element analysis, simulation ofthe valve cavity and the temperature of the conduction of the parts, to ensurethe effectiveness of parts. This can be customized for customers to offer thebest solution.
进口保温截止阀品牌
德国托马斯阀门集团于1933年创建于德国鲁尔工业区，也是世界最重要的工业区。位于德国西部、莱茵河下游支流鲁尔河与利珀河之间的地区。德国托马斯阀门集团是以生产高品质、先进的阀门、测量及控制系统而享誉全球的跨国性生产企业。采用世界先进的设备及生产工艺，所有产品都在严格的质量体系监控下完成作业。并在各大洲几十个国家拥有子公司及分支机构。
