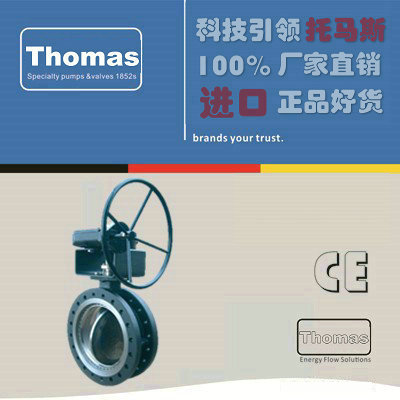

进口三偏心蝶阀原理特点
进口三偏心蝶阀结构采用三维偏心原理设计，阀座采用硬软密封兼容的多层次结构，加工精湛，工艺先进。本产品由阀体、蝶板、多层次阀座、阀杆、传动机构等主要部件组成。由于本产品蝶阀采用的是三维偏心原理设计，使密封面的空间运动轨迹达到理想化，密封面相互之间无磨擦、无干涉，加之密封材料选择得当，从而使蝶阀的密封性、耐腐蚀性、耐高温性和耐磨性等得到了可靠的保证。
Triple offset metal to metal seat butterfly valve Titania is specially designed to ensure a perfect tightness in steam, gas, chemical, petrochemical and cryogenic applications.
Product features
• Body types
T1 Wafer, T3 Lug, T8 Flange
• Face to face dimension
PN10/16/25/40 according to EN558-1
ANSI cl.150/300 according to EN558-1
Table 16 for T1 Wafer and T3 Lug
Table 13 for T8 Flange
• Top flange
according to EN ISO 5211
• Rating
PN10/16/25/40, ANSI cl.150/300
• Max. working pressure
50 bar
• Temperature range
-196°C ... +700°C according to material
• Tightness test
according to API 598
• FIRE SAFE design
according to BS 6755 part 2-87, with amendment 2
• ATEX option
Execution according to ATEX 2014/34/EC, Zone 1 and 21 – Gr II, Cat. 2 G/D
The butterfly valves TITANIA meet the safety requirements of the pressure Equipments Directive 2014/68/EC (PED) appendix 1 for fluids of the groups 1 and 2.
Triple offset function:
Offset 1E:
The center of rotation is offset from the thigtness surface to allow a total contact around the entire seal.
Offset 2E:
The center of rotation of the disc is offset from the pipe centerline to allow a cleaning opening valve.
Offset 3E:
The third offset issue from the seal cone tilting cancel jamming and friction and allow complete tightness without seal deformation (solid seal).
Tightness:
Bi-directional tightness
Closing without jamming and friction
No deformation on the seal
Dimensions
| DN | A | B | C | Dmax | E | G | ISO 5211 | PN10/16/25/cl.150 | PN40/cl.300 |
| 80 | 200 | 119 | 114 | 210 | 35 | 16 | F05-07 | - | 16 |
| 100 | 225 | 143 | 127 | 254 | 45 | 20 | F05-07 | - | 25 |
| 125 | 250 | 143 | 140 | 279 | 45 | 20 | F05-07 | - | 39 |
| 150 | 295 | 175 | 140 | 318 | 55 | 25 | F07-10-12-14 | - | 58 |
| 200 | 325 | 210 | 152 | 381 | 70 | 35 | F07-10-12-14 | 68 | 86 |
| 250 | 360 | 247 | 165 | 450 | 75 | 40 | F10-12-14-16 | 97 | 127 |
| 300 | 400 | 287 | 178 | 521 | 80 | 45 | F10-12-14-16 | 131 | 176 |
| 350 | 445 | 322 | 190 | 584 | 85 | 50 | F14-16-25 | 178 | 235 |
| 400 | 530 | 355 | 216 | 660 | 90 | 60 | F16-25-30 | 258 | 337 |
| 450 | 565 | 393 | 222 | 711 | 100 | 65 | F25-30 | 300 | 400 |
| 500 | 652 | 427 | 229 | 775 | 115 | 75 | F25-30 | 420 | 522 |
| 600 | 726 | 502 | 267 | 914 | 130 | 85 | F25-30-35 | 639 | 820 |
| 700 | 860 | 574 | 292 | 1035 | 150 | 100 | F30-35-40 | 784 | 1029 |
| 800 | 865 | 646 | 318 | 1149 | 115* | 75* | F30 | 1024 | 1344 |
| 900 | 990 | 710 | 330 | 1270 | 115* | 75* | F30-35 | 1437 | 1844 |
| 1000 | 1078 | 772 | 410 | 1320 | 150* | 100* | F30-35 | 1850 | - |
| 1200 | 1243 | 919 | 470 | 1485 | 165* | 110* | F30-40 | 2226 | - |
| 1400 | 1409 | 1066 | 530 | 1685 | 185* | 126* | F40 | 3091 | - |
进口三偏心蝶阀品牌
德国托马斯阀门集团于1933年创建于德国鲁尔工业区，也是世界最重要的工业区。位于德国西部、莱茵河下游支流鲁尔河与利珀河之间的地区。德国托马斯阀门集团是以生产高品质、先进的阀门、测量及控制系统而享誉全球的跨国性生产企业。采用世界先进的设备及生产工艺，所有产品都在严格的质量体系监控下完成作业。并在各大洲几十个国家拥有子公司及分支机构。
