进口工程塑料隔膜泵原理特点及品牌（图）

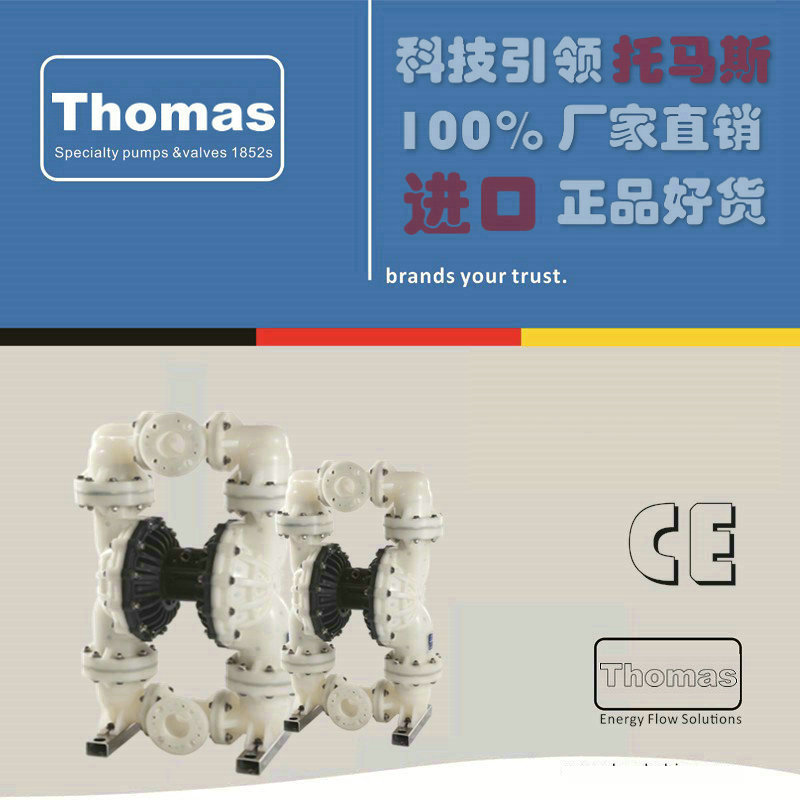

进口工程塑料隔膜泵以优质工程塑料或增强聚丙烯为泵体，具有良好的物理性能，以F46为隔膜片，可适用于酸、 碱及各类有机溶剂，应用范围极其广泛，德国托马斯(Thomas)隔膜泵具有结构美观，良好的物理抗性，经久耐用等特点，对于各种腐蚀性液体、带颗粒、高粘度、易挥发、易燃、易爆、剧毒的液体、陶瓷釉浆、果浆、胶水、油轮仓底油回收、临时倒罐等液体均能予以抽光吸尽，尤其可以解决叶片式泵的跑、冒、滴、漏及不允许空转等问题，是目前国际最新颖的一种采用压缩空气为动力源，通过气阀往复运动分配空气，带动隔膜挤压输送介质的容积式泵，该泵集杂质泵、自吸泵、泥浆泵、屏蔽泵、潜水泵等输送机械的优点。

产品用途

1、泵吸花生酱、泡菜、土豆泥、小红肠、果酱苹果浆、巧克力等。

2、泵吸油漆、树胶、颜料。

3、粘合剂和胶水、全部种类可用泵吸取。

4、各种瓦、瓷、砖器及陶器釉浆。

5、油井钻好后，用泵吸沉积物及灌浆。

6、泵吸各种乳剂和填料。

7、泵吸各种污水。

8、用泵为油轮，驳船清仓吸取仓内污水。

9、啤酒花及发酵粉稀浆、糖浆、糖密。

10、泵吸矿井、坑道、隧道、选矿、矿渣中的积水。泵吸水泥灌浆及灰浆。

11、各种橡胶浆。

12、各种磨料、腐蚀剂、石油及泥浆、清洗油垢及一般容器。

13、各种剧毒、易燃、易挥发液体。

14、各种强酸、强碱、强腐蚀液体。

15、各种高温液体最高可耐150℃。

16、作为各种固液体分离设备的前级送压装置。

产品特点

1、不需灌引水，吸程高达7m，扬程达50m，出口压力≥6kgf/cm2;

2、流动宽敞通过性能好允许通过最大颗粒直径达10mm。抽送泥浆、杂质时，对泵磨损甚微;

3、扬程、流量可通过气阀开度实现无级调节（气压调节在1-7kgf/cm2之间）;

4、无旋转部件，没有轴封，隔膜将抽送的介质与泵的运动部件、工作介质完全隔开，所输送的介质不会向外泄漏。所以抽送有毒、易发挥或腐蚀性介质时，不会造成环境污染和危害人身安全;

5、不必用电，在易燃、易爆场所使用安全可靠;

6、可以浸没在介质中工作;

7、作用方便、工作可靠、开停只需简单地打开和关闭气体阀门，即使由于意外情况而长时间无介质运行或突然停机，泵也不会因此而损坏，不旦超负荷，泵会自动地停机，具有自我保护性能，当负荷恢复正常后，又有自动启动运行;

8、结构简单、易损件少，该泵结构简单，安装、维修方便，泵输送的介质不会接触到配气阀，联杆等运动部件，不象其他类型的泵因转子、活塞、齿轮、叶片等部件的磨损而使性能逐步下降;

9、可输送较粘的液体（粘度在1万厘泊以下）;

10、无须用油润滑，即使空转，对泵也无任何影响，这是该泵一大特点。

Engineering plastic diaphragm pump to high-quality engineering plastics or reinforced polypropylene for the pump, with good physical properties to F46 for the diaphragm, applicable to acid, alkali and various organic solvents, the application of a wide range of German Thomas diaphragm pump with beautiful structure, good physical resistance, durable and so on, for a variety of corrosive liquids, with particles, high viscosity, volatile, flammable, explosive, highly toxic liquid, ceramic glaze pulp, Pulp, glue, oil tanker bottom oil recovery, temporary cans and other liquid can be exhausted exhaustion, in particular, can solve the blade pump running, running, dripping, leakage and does not allow idling and other issues, is the latest international The use of compressed air as the power source, through the valve reciprocating motion distribution of air, driven by the diaphragm extrusion conveying medium displacement pump, the pump impurity pump, self-priming pump, mud pump, shielding pump, submersible pump and other transportation machinery The advantages.

Product Usage

1, pumped peanut butter, pickles, mashed potatoes, small red sausage, jam apple pulp, chocolate and so on.

2, pumping paint, gum, paint.

3, adhesive and glue, all kinds of pump can be pumped.

4, all kinds of tile, porcelain, brick and pottery glaze pulp.

5, the oil well after drilling, with pumping sediment and grouting.

6, pumping a variety of emulsions and fillers.

7, pumping a variety of sewage.

8, with the pump for the tanker, barge clearance to absorb the sewage inside the warehouse.

9, hops and baking powder slurry, syrup, sugar secret.

10, pumping wells, tunnels, tunnels, mineral processing, slag in the water. Pumping cement grouting and mortar.

11, all kinds of rubber pulp.

12, all kinds of abrasives, corrosion agents, oil and mud, cleaning grease and general containers.

13, all kinds of highly toxic, flammable, volatile liquid.

14, all kinds of strong acid, alkali, strong corrosive liquid.

15, a variety of high temperature liquid can withstand up to 150 ℃.

16, as a variety of solid liquid separation equipment, the former pressure device.

Features

1, without irrigation water, suction up to 7m, head up to 50m, the outlet pressure ≥ 6kgf / cm2;

2, the flow through the performance of the spacious through the maximum particle diameter of up to 10mm. Pumping mud, impurities, the pump wear is minimal;

3, head, the flow through the valve opening to achieve stepless adjustment (air pressure adjustment between 1-7kgf / cm2);

4, no rotating parts, no shaft seal, the diaphragm will be pumping the media and the pump moving parts, the working medium completely separated, the transmission of the media will not leak out. So pumping toxic, easy to play or corrosive media, will not cause environmental pollution and harm to personal safety;

5, do not have electricity, flammable, explosive use of safe and reliable place;

6, can be immersed in the media work;

7, the role of convenient, reliable, open only need to simply open and close the gas valve, even if the accident and a long time without media operation or a sudden shutdown, the pump will not be damaged, no overload, the pump will automatically To stop, with self-protection performance, when the load back to normal, there are automatic start running;

8, the structure is simple, less wearing parts, the pump structure is simple, easy installation, easy maintenance, pump delivery media will not come into contact with the valve, connecting rod and other moving parts, unlike other types of pumps due to the rotor, , Leaves and other components of the wear and tear of the performance gradually decreased;

9, can transport more viscous liquid (viscosity in less than 10,000 centipoise);
