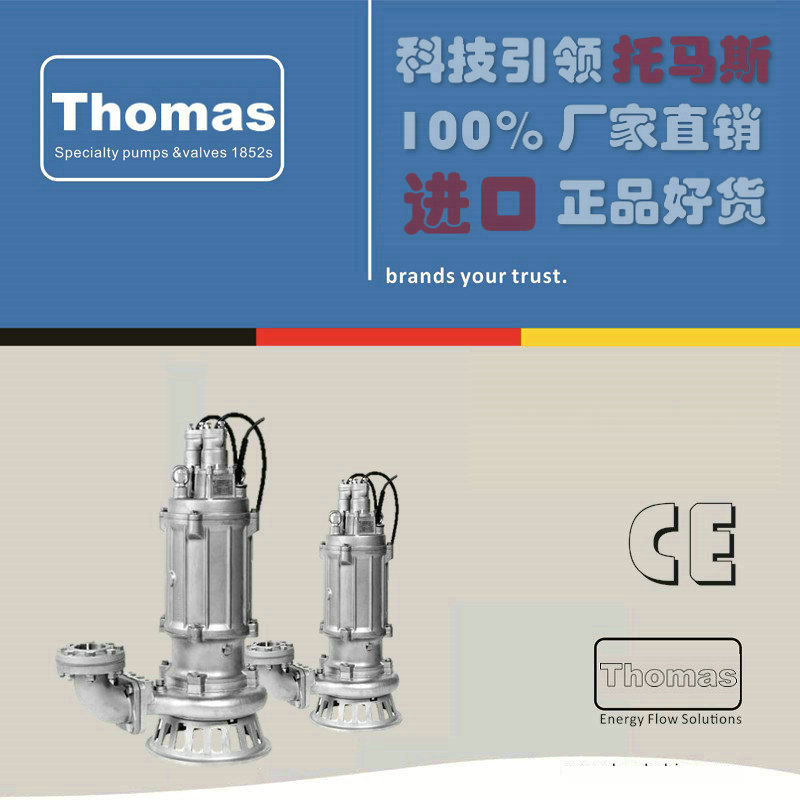

进口不锈钢潜水泵原理特点及品牌（图）

进口不锈钢潜水泵是由德国托马斯(Thomas)工厂选用优质不锈钢材质精密铸造而成，具有耐磨、耐腐蚀等特性，由于外观平滑整洁美观深受国外市场欢迎。此款水泵德国托马斯(Thomas)综合国际先进技术，采用不锈钢设计的排水结构，因为一般污水泵都有一定的腐蚀性和磨损，在设计上采用了耐磨，耐腐蚀的不锈钢作为主要材料，它具有普通潜水排污泵的全部优点，同时增加了耐磨耐腐蚀的特点，扩大了适用范围。

安装方式

A:移动式安装：水泵标配弯头，直接接软管实现移动式安装

B:固定式安装：水泵取下弯头，出口为6KG国家标准法兰，直接上螺丝，实现法兰对接式固定安装。

产品特点

1、具有无堵塞、防缠绕、结构紧密、体积小、耐磨、耐腐蚀，适用寿命长等特点，可抽送污物介质、短纤维、浆料、稠油固体颗粒等。除了污物介质外，还耐磨耐腐蚀，是化工、食品行业的理想产品。

2、该系列产品全部采用精密铸造而成，除了能够生产304的以外，还可以生产316、316L、等。

3、不锈钢自身有耐高温性能，正常情况下可耐介质温度50度左右，在德国托马斯(Thomas)的技术改进上可在100度以下的介质温度定做。

4、304的使用范围在PH值4-10之间好用，如果超过该介质，建议使用316或者316L。

5、电压除了可以做220V和380V以外，还可以定做660V电压。

Stainless steel submersible pump is made by the German Thomas (Thomas) factory selection of high-quality stainless steel precision casting, with wear-resistant, corrosion-resistant and other characteristics, due to the appearance of smooth and clean and beautiful by foreign markets. This type of water pump Thomas (Thomas) integrated international advanced technology, the use of stainless steel design drainage structure, because the general sewage pump has a certain degree of corrosion and wear, in the design of the use of wear-resistant, corrosion-resistant stainless steel as the main material, It has all the advantages of ordinary submersible sewage pump, while increasing the wear-resistant corrosion characteristics, to expand the scope of application.

Installation method

A: mobile installation: water pump standard elbow, direct access to the hose to achieve mobile installation

B: fixed installation: the pump to remove the elbow, the export for the 6KG national standard flange, directly on the screw, to achieve a fixed flange connection.

Features

1, with no clogging, anti-winding, compact structure, small size, wear, corrosion resistance, long life and other characteristics, can be pumping dirt media, short fiber, pulp, heavy oil solid particles. In addition to dirt media, but also wear-resistant corrosion, chemical, food industry is the ideal product.

2, the series of products used in all precision casting, in addition to the production of 304, you can also produce 316,316 L, and so on.

3, stainless steel itself has high temperature performance, under normal circumstances can be resistant to medium temperature of about 50 degrees, in Germany Thomas (Thomas) technical improvements can be 100 degrees below the medium temperature custom.

4,304 use in the PH value of 4-10 between the easy to use, if more than the media, it is recommended to use 316 or 316L.
