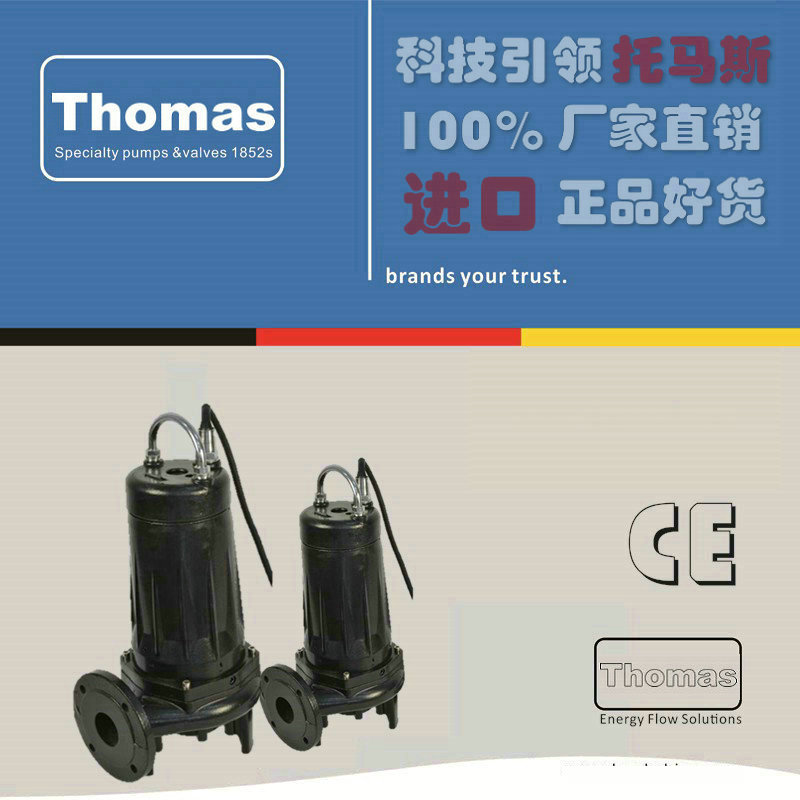

进口立式排污泵原理特点及品牌（图）

进口立式排污泵是在德国托马斯(Thomas)先进技术基础上，通过吸收、转化研制而成，各项性能指标均达到德国标准同类产品水平。由于采用独特的单（双）通道叶轮，排污能力强、能有效的通过泵口径的5倍纤维物与直径为泵口径50%的固体颗粒，动密封采用两组特殊材料的硬质合金机械密封装置，材质为铸铁和不锈钢。该系列泵采用独特叶轮结构和新型机械密封，能有效地输送含有固体物和长纤维。叶轮与传统叶轮相比，该泵叶轮采用单流道或双流道形式，它类似于一截面大小相同的弯管，具有非常好的过流性，配以合理的蜗室，使得该泵具有效率高、叶轮经动静平衡试验，使泵在运行中无振动。该泵水力性能先进、成熟，产品经测试各项性能指标均达到有关标准规定，产品投放国际市场后以其独特的功效，可靠的性能，稳定的质量受到广大用户的欢迎和好评。

产品特点

1、采用独特的单叶片或双叶片叶轮结构，大大提高了污物的通过能力，能有效的通过口径的5倍纤维物质与直径为泵口径约50％的同体颗粒；

2、机械密封采用新型硬质全金耐腐的碳化钨材料，使其长期处于油室内运行，可使泵安全连续运行8000小时以上；

3、整体结构紧凑、体积小、噪声小、节能效果显著，检修方便，同时因电机采用标准的Y系列电机，方便用户更换；

4、自动控制柜可以根据所需液位变化，自动控制泵的超动与停止，不需专人看管，使用极为方便；

5、可根据用户需要配备方盘、圆盘安装系统，它给安装、维修带来极大方便，人可不必此为而进入污水坑；

6、能够在全扬程范围内使用，而保证电机不会过载；

7、该排污泵配上户外型电机，则无须建泵房，可直接安装于户外使用节省开支；

8、泵为立式结构。

产品用途

适用用于工厂商业严重污染废水的排放、住宅区的污水排污站、城市污水处理厂派水系统、人防系统排水站、自来水厂的给水设备、医院、宾馆的污水排放、市政工程建筑工地、矿山配套附机、农村沼气池、农田灌溉等行业，输送带颗粒的污水、污物，也可用于清水及带弱腐蚀性介质。

使用条件

1、排污泵的使用环境温度≤40℃，湿度≤95%；海拔高度≤1000米。

2、介质温度不超过60℃，介质重度为1～1.3kg/dm3。

3、铸铁材质的使用范围是PH5～9。

4、1Cr18Ni9Ti不锈钢材质可使用一般腐蚀性介质。

5、使用环境海拔高度不超过1000米。

结构说明

进口立式排污泵为单吸蜗壳式泵，泵内装有无堵塞防缠绕型单（双）大流道叶轮，具有很好的通过能力。该系列泵具有两种结构形式，一是电机与泵直接同轴，二是采用联轴器联接，电机采用标准立式电机。每种结构形式具有两种底座连接形式，一是进口水平吸入，具有转角功能，可根据使用要求，进出口安放成0°、90°、180°、270°，便于管路连接，二是进口轴向吸入，便于立式安装。

Vertical sewage pump is in Germany Thomas (Thomas) on the basis of advanced technology, through the absorption, transformation and development, the performance indicators have reached the German standard similar products. As a result of the unique single (double) channel impeller, sewage ability, can effectively through the pump diameter of 5 times the diameter of the fiber diameter and diameter of 50% of the solid particles, dynamic sealing two groups of special materials, carbide mechanical seal The device is made of cast iron and stainless steel. The series of pumps with a unique impeller structure and a new mechanical seal, can effectively transport containing solid and long fiber. Impeller Compared with traditional impeller, the pump impeller with a single channel or double channel form, it is similar to a cross-section of the same size of the elbow, with a very good overcurrent, coupled with a reasonable spiral chamber, making the pump with efficiency High, impeller by static and static test, so that the pump in the run without vibration. The pump hydraulic performance of advanced, mature, the product tested by the performance indicators have reached the relevant standards, products put on the international market with its unique efficacy, reliable performance, stable quality by the majority of users welcome and praise.

Features

1, the use of unique single leaf or double leaf impeller structure, greatly improving the ability of dirt through, can effectively pass the diameter of 5 times the fiber material and diameter of about 50% of the diameter of the same particles;

2, the mechanical seal with a new type of hard gold-free corrosion of tungsten carbide material, so that long-term operation in the oil chamber, the pump can run continuously for more than 8000 hours;

3, the overall structure of compact, small size, low noise, energy saving effect is significant, easy maintenance, while the motor using the standard Y series motor, user-friendly replacement;

4, automatic control cabinet can be based on the required level changes, automatic control of the pump overturned and stopped, without special care, the use of extremely convenient;

5, according to the needs of users with square plate, disc installation system, it is to install, repair a great convenience, people do not have to enter the sewage pits;

6, can be used in the whole lift range, and ensure that the motor will not overload;

7, the sewage pump coupled with outdoor motor, you do not need to build a pump room, can be installed directly in the outdoor use of cost savings;

8, the pump is a vertical structure.

Product Usage

Applicable for the serious pollution of wastewater in the factory business, the sewage discharge station in the residential area, the sewage treatment system of the urban sewage treatment plant, the drainage system of the civil air defense system, the water supply equipment of the water plant, the sewage discharge of the hospital and the hotel, the municipal construction site, the mine Supporting the machine, rural biogas digesters, farmland irrigation and other industries, conveyor belt particles of sewage, dirt, can also be used for water and with weak corrosive media.

Conditions of Use

1, the use of sewage pump ambient temperature ≤ 40 ℃, humidity ≤ 95%; altitude ≤ 1000 meters.

2, the medium temperature does not exceed 60 ℃, medium heavyness of 1 ~ 1.3kg / dm3.

3, the use of cast iron material is PH5 ~ 9.

4,1Cr18Ni9Ti stainless steel material can use the general corrosive media.

5, the use of environmental altitude of not more than 1000 meters.

Structural description
