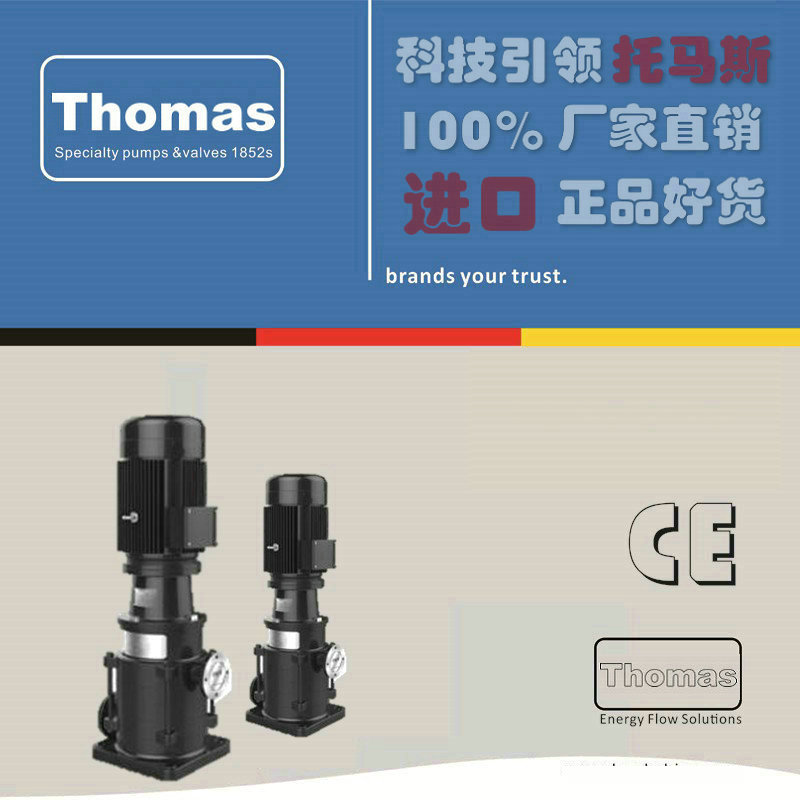

进口多级管道泵原理特点及品牌（图）

进口多级管道泵采用标准立式电机和快装式机械密封，更换非常方便。泵的过流部分均采用不锈钢（304�）材料制成，可适用于轻度腐蚀性介质。德国托马斯(Thomas)多级管道泵投放国际市场后，以其高效节能、质量可靠、使用范围广等特点，深受广大用户的喜爱。

产品特征

1、采用优良的水力模型和先进的制造工艺，大大提高泵的性能及使用寿命。

2、由于轴封采用材料为硬质合金及氟橡胶的机械密封，可提高泵运行的可靠性及输送介质的温度。

3、泵的过流部分采用不锈钢板冲压焊接而成，使得泵可适用于轻度腐蚀性介质。

4、整体结构紧凑、体积小、重量轻、噪声低、节能效果显著，检修方便。

5、泵的进水口与出水口位于泵座同一水平线上，可直接用于管路当中。

6、采用标准电机，用户可方便地根据需要配备电机。

7、可根据用户需要配备智能保护器，对泵干转、缺相、过载等进行有效保护。

产品用途

1、供水：水厂过滤与输送、水厂分区送水、主管增压、高层建筑增压。

2、工业增压：流程水系统、清洗系统、高压冲洗系统、消防系统。

3、工业液体输送：冷却和空调系统、锅炉给水和冷凝系统、机床配套、酸性和碱性介质输送。

4、水处理：超滤系统、反渗透系统、蒸馏系统、分离器和游泳池的水处理系统。

5、灌溉：农田灌溉、喷灌、滴灌。

输送介质

1、稀薄、清洁、不含固体颗粒或纤维的非易燃易爆介质。

2、诸如矿泉水、软化水、纯水、清油和其他轻化工介质。

3、泵主要材料为不锈钢，可应用于抽送轻度腐蚀性介质。

技术参数

流量：4.2-504m3/h；

扬程：24-240m；

功率：1.5-450kw；

转速：1480r/min；

口径：φ40-φ250；

温度范围：0-+90℃；

工作压力：≤2.4Mpa。

Multi-stage pipeline pump with standard vertical motor and quick-mounted mechanical seal, the replacement is very convenient. The pump overcurrents are made of stainless steel (304 316) and are suitable for mildly corrosive media. Germany Thomas (Thomas) multi-stage pipeline pump put the international market, with its energy efficient, reliable, wide range of use, and other characteristics, by the majority of users love.

Product features

1, the use of excellent hydraulic model and advanced manufacturing process, greatly improving the performance and service life of the pump.

2, because the shaft seal material for the carbide and fluorine rubber mechanical seal, can improve the reliability of pump operation and transmission medium temperature.

3, the pump part of the flow through the stainless steel plate stamping welding, making the pump can be applied to mild corrosive media.

4, the overall structure of compact, small size, light weight, low noise, energy saving effect is significant, easy maintenance.

5, the pump inlet and outlet located in the pump on the same level, can be used directly in the pipeline.

6, the use of standard motor, the user can easily equipped with the necessary motor.

7, according to user needs with intelligent protector, the pump dry turn, lack of phase, overload and other effective protection.

Product Usage

1, water supply: water plant filtration and transportation, water plant sub-district water, in charge of pressurization, high-rise building pressurization.

2, industrial pressurization: process water system, cleaning system, high pressure flushing system, fire protection system.

3, industrial liquid transport: cooling and air conditioning systems, boiler feed water and condensation systems, machine tools, acidic and alkaline media delivery.

4, water treatment: ultrafiltration system, reverse osmosis system, distillation system, separator and swimming pool water treatment system.

5, irrigation: farmland irrigation, irrigation, drip irrigation.

Transport media

1, thin, clean, non-flammable and explosive media free of solid particles or fibers.

2, such as mineral water, softened water, pure water, oil and other light chemical media.

3, the main pump material for the stainless steel, can be used to extract mild corrosive media.

Technical Parameters

Flow: 4.2-504m3 / h;

Head: 24-240m;

Power: 1.5-450kw;

Speed: 1480r / min;

Caliber: φ40-φ250;

Temperature range: 0- + 90 ℃;
